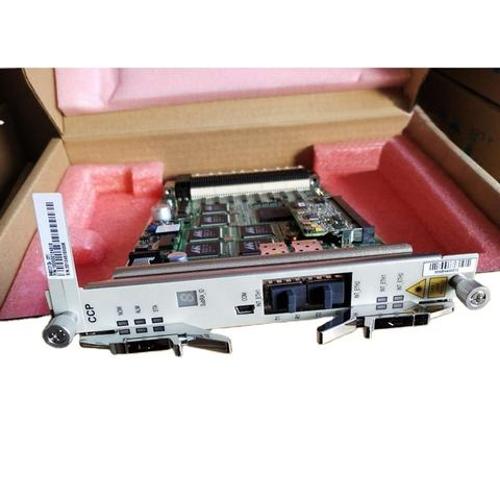

CCP N2M2CCP N4M2CCP N5M2CCP OTN8300 OTN8700 OTN9700 M721 M800 M900 SEIA1 SCC CCP SNP SOSCB ESC PWC PWD PWE SEOBA CLK OCI
Short Description:
| Function and Parameters | |
| ZXONE 8200 | |
| ZXONE8300 | ZXONE8500 |
| Power Supply | |
| -48DC(-60V~40V) | |
| Maximum Power Consumption | |
| 1704W(40x10G) | |
| 3318W(80x10G) | 4830(160x10G) |
| Dimensions(H*W*D) | |
| 447 mm x 535 mm x 275 mm | |
| 897 mm x 535 mm x 275 mm | 1425 mm x 535 mm x 275 mm |
| Weight | |
| 15kg | |
| 26kg | 37kg |
| Trans Dimensions(H*W*D) | 422 mm x 533mm x 286 mm |
| Trans Weight | 12.5kg |
| Fixed Interface | |
| 23 | |
| 46 | 69 |
| Admission | STM-N,POS,ATM,GE ,10GE,FC,ESCON,FICON,DVB |
| transmittability | 10G-5000KMZ(300KM),40G-2000KM |
| intersect | WSS.-2~10 ROADM,ODUO/1/1/3,800G/1.6T/3.2T |
| Working Temperature | Long term working temperature: 0 ℃ ~+45 ℃ |
| Humidity | Long term working Humidity10%~90% |
| MTBF/MTTR | >235002 hours/ < 30 minutes |
