| Model |

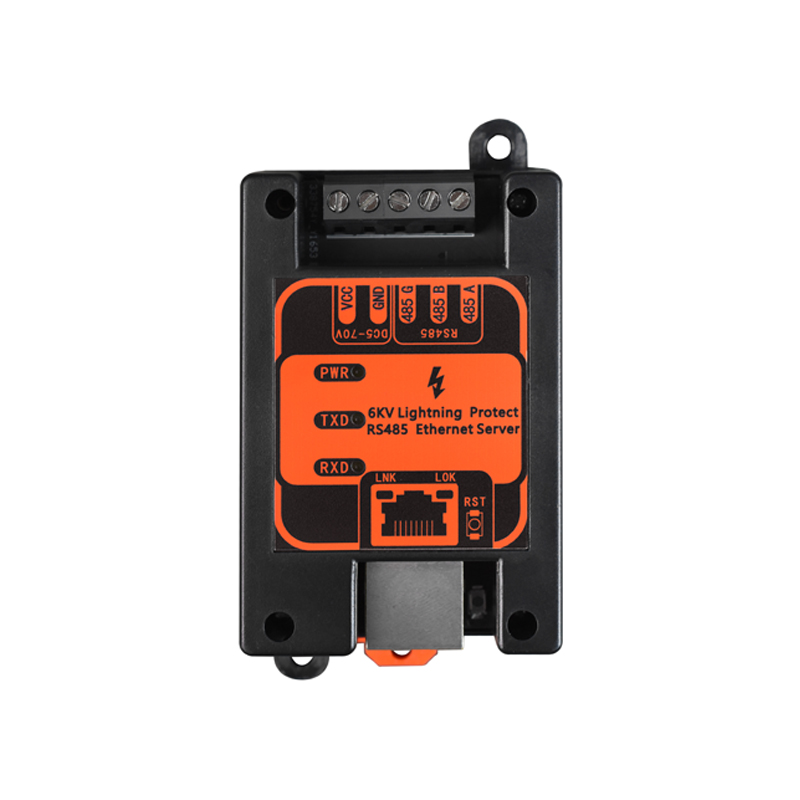

FCT-101-R |
| Function Description |
transmit one RS485 serial port over Ethernet, Industrial Din Rail |
| Port Description |
1 RS485 serial terminal interface, 1 100Mbps Ethernet port |
| Power Supply |
DC5-70V input, power consumption < 3W;support overload protection and reverse connection protection;Access terminal: 2-core 5.08mm pitch screw terminal |
| Product Dimensions |
110mm (L) x 86mm (W) x 40.5mm (H)Mounting method: DIN-rail Mount, Wall-Mounted |
| Weight |
0.072Kg/pcs |
| MOQ |
10 units |
