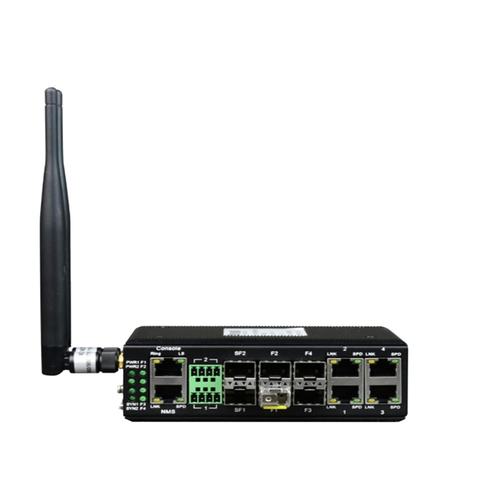

Optical fiber WiFi backup type 4 100M optical + 4 100m ethernet port to 1-way uplink gigabit optical industrial rail switch
Short Description:
| name | Optical fiber WiFi backup type: two 300mbps wireless + 4 100m Ethernet + 4 100m optical + 1 gigabit optical port ofieee802.11b/g/n, industrial switch (Industrial rail type or wall mounted type) |
| Functional Description | Two 300mbps wireless + 4 * 10 / 100M ethernet ports + 4 * 100m optical ports + gigabit optical switch, SFP optical module,industrial rail type or wall mounted type of ieee802.11b/g/n |
| Port Description | Two 300mbps wireless ieee802.11b/g/n, four 100Mbps Ethernet optical ports, four 100Mbps electric ports, one channel of gigabitoptical interface, one Ethernet network management interface (SNMP), one console interface |
| Power | Redundant dual power input dc9-48v / ac9-48v, power consumption < 10WOverload protection: support; reverse connection protection: support; redundancy protection: support cAccess terminal: 4-core 5.08mm spacing plug-in terminal |
| Dimension | Product Size: 133 X110 X50mm (WXDXH) |
| Weight | 1.1KG |
