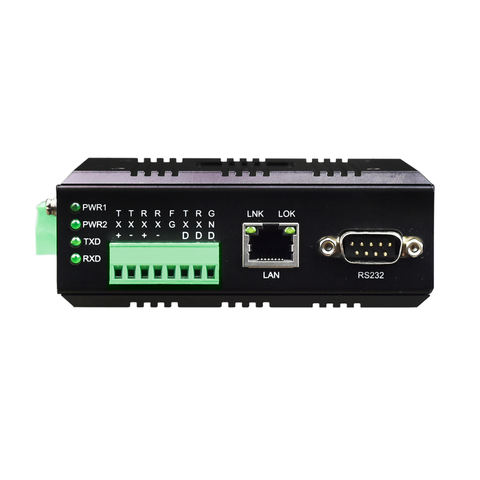

Mini 1 Port RS232 RS422 RS485 to TCP IP Converter Industrial Serial to Ethernet Converter With Internal Power Optional
Short Description:
| Model Number | FCT-201-F |
| Product Function Description | Transmit 1 channel RS232/422/485 serial port on Ethernet, industrial rail type |
| Service Port Description | 1*RS232/422/485 serial terminal interface, 1*DB9 male port, 1*Fast Ethernet port |
| Power Supply | DC power supply:Redundant dual power input DC9-70V or AC7-50V, power consumption <5WOverload protection: support; reverse polarity protection: support; redundancy protection: supportAccess terminal: 4-core 5.08mm pitch plug-in terminalAC built-in power supply:AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5WOverload protection: support;Access interface: AC Cross style sockets |
| Product Size | (110mm(L) x 86mm(W) x 40.5mm(H)Installation method: rail installation, wall-mounted installation |
| Weight | 0.495KG/PCS |
