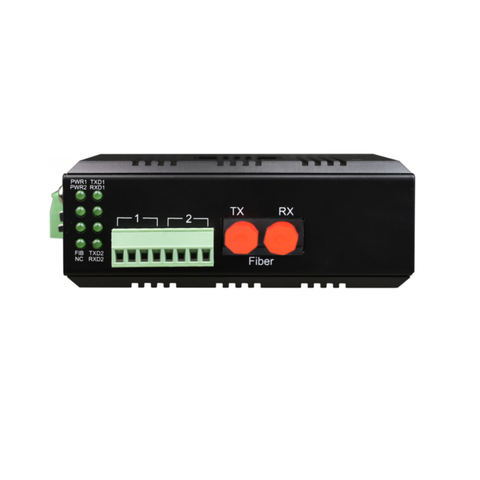

FCTEL industrial din-railed 1-channel RS232 422 485 fiber modem serial to fiber converter
Short Description:
| Serial interface | |
| Standard | EIA/TIA-232 RS-232 (ITU-T V.28)EIA/TIA-422 RS-422 (ITU-T V.11)EIA/TIA-485 RS-485 (ISO/IEC8284) |
| Serial interface | RS-422: TxD+ TxD- RxD+ RxD- Ground(corresponding to 1-2-3-4-5)RS-485 4 wires: TxD+ TxD- RxD+ RxD- Ground(corresponding to 1-2-3-4-5)RS-485 2 wires: A (corresponding to TX+) B (corresponding to TX-) Ground(corresponding to 1-2-5)RS-232: RXD TXD Signal Ground(corresponding to 6-7-8) |
| Fiber | |
| Receiving sensitivity | -28dBm~ -40dBm |
| Typical transmitting power | Multi-mode 850nm: -18dBm |
| Wavelength | 850nm Multi-mode |
