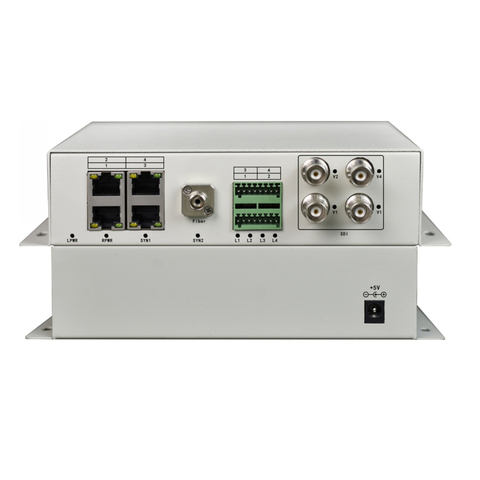

Multi-service Video Multiplexer 4 Ch 3G HD SDI to SC LC Fiber Optic Converter With Fast Ethernet and Serial Port
Short Description:
| Product number | FCP-V4G2K8 |
| Product Function Description | Simultaneously transmit 4 channels of 3G HD-SDI video on the optical fiber, 1-8 channels of dry contact interfaces / 1-4 channelsof RS232-422-485 interfaces; 2 channels of Gigabit Ethernet (physical isolation), 2 channels of Fast Ethernet ( physicalisolation) |
| Service port description | 1-4 channels of 3G HD-SDI video, 1-8 channels of digital interface/1-4 channels of RS232-422-485 interfaces, 2 channels of GigabitEthernet, 2 channels of Fast Ethernet, 1 optical fiber interface |
| Power | AC220V / DC-48V / DC+24V (power supply optional), power consumption: ≤10W |
| Size | (L×W×H) 186*138*45mm desktop |
| Weight | 0.8Kg / pc |
