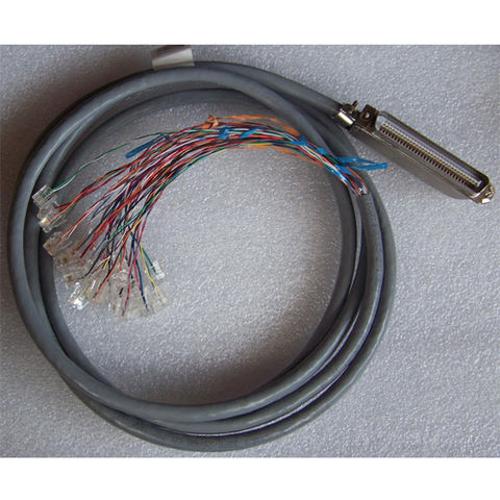

Huawei 10m 64 Cores 32-Channel ADSL Subscriber Cable CSAD32101 for MA5616
Short Description:
| Connector | Champ 64-pin |
| Cable type | Symmetrical twisted pair |
| Color | PANTONE 430U |
| Characteristic impedance | 100.0 ohms |
| Wire diameter of the inner conductor | 0.400 mm |
| Wire gauge of the inner conductor | 26 AWG |
| Number of wires | 64 |
| Breakdown voltage | 1000.0 V |
| DC resistance of the inner conductor | 145.0 ohms/km |
| Frequency range | ADSL: 1 MHz–20 MHz VDSL: 1 MHz–30 MHz |
| Frequency attenuation | ≤ 2.95 dB/100 m (1 MHz) |
| Capacitance | ≤ 56 nF/km (1 kHz) |
