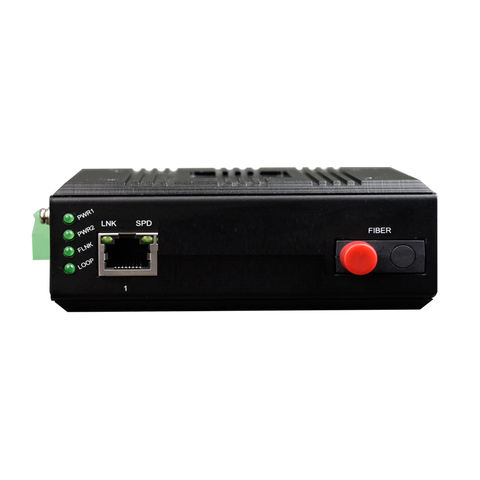

Din Rail Industrial Grade 1 Port 10/100M Ethernet to Optical Fiber Media Converter with Redundant Dual DC Power
Short Description:
| Product Number | FCM-F1-MAC |
| Product Function Description | 1 channel 100M optical port to 1*10/100M Ethernet port, sharing 100M bandwidth, and has the function of automatic power off andrestart of the whole machine when the transceiver crashes; automatic loop detection and isolation function, LFP function,industrial rail type |
| Service Port Description | One 1*9 or SFP 100M optical port, 1*100M Ethernet port, AC power port |
| Power Supply | DC power supply:Redundant dual power input DC9-70V or AC7-50V, power consumption <5WOverload protection: support; reverse polarity protection: support; redundancy protection: supportAccess terminal: 4-core 5.08mm pitch plug-in terminalAC built-in power supply:AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5WOverload protection: support;Access interface: cross style AC sockets |
| Product Size | Shell: IP40 protection grade, aluminum alloy materialDimensions: 110mm(L) x 86mm(W) x 40.5mm(H)Installation method: rail installation, wall-mounted installation |
| Weight | 0.295KG/PCS |
