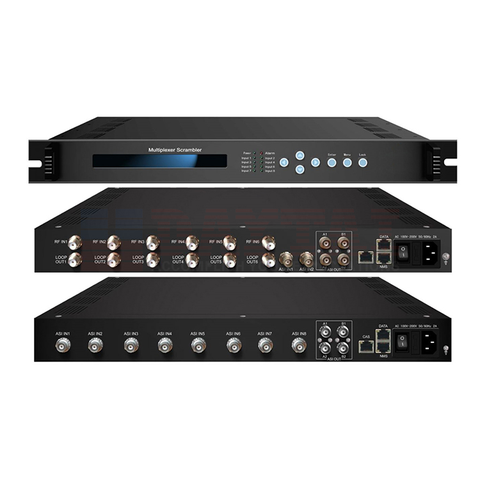

Tuner ASI Input IP Output Digital TV Headend Equipment Integrated Mux-scrambler
Short Description:
| Item | |
| Specification | |
| Input interface | |
| Tuner | |
| 6 tuners (DVB-S/ DVB-C / DVB-S2/ISDB-T optional) | NDS3712 |
| ASI | |
| 2 ASI | |
| 8ASI | NDS3712A |
| Re-multiplex | |
| 2 channels TS re-multiplex | |
| PID re-mapping ( auto/manual optional) | |
| PCR accurate adjusting | |
| Automatically generating PSI/SI table | |
| Input | |
| Packet format | |
| 204/188 self-adaption | |
| Scrambling | |
| Simul-crypt CA | |
| 4 | |
| Standard | |
| ETR289, ETSI 101 197, ETSI 103 197 | |
| Connection | |
| Local/Remote connect | |
| Output port | |
| ASI | |
| 2 groups separate outputs (each group has 2 channels) | |
| IP | |
| TS over UDP as mirror of ASI output -1000M based (RJ45) | |
| PID | |
| Output range | |
| 0x0000—0x1FFF | |
| Amount of output PID per input | |
| 64 | |
| NMS port | |
| Ethernet port | |
| 10/100M | |
| Miscellaneous | |
| Demission(LxWxH) | |
| 482mm×410mm×44mm | |
| Weight | |
| 4kg | |
| Temperature | |
| 0~45℃(operation)，-20~80℃(storage) | |
| Power supply | |
| AC 110V±10%, 50/60HzOr AC 220V±10%, 50/60Hz | |
| Consumption | |
| ≈18W |
