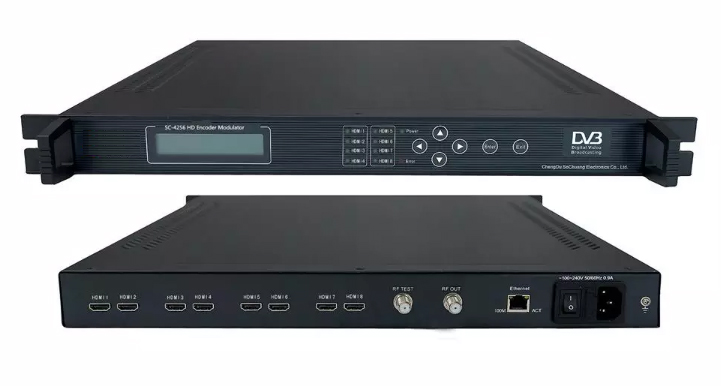

DVB-T Encoder/Modulator
8×DVB-S2 to 3×DVB-T Trans-modulator support 8×DVB-S/S2 (QPSK/8PSK) transponders and 1×ASI input, then multiplex input signal to output selected programs through 3 DVB-T RF channels. It provides a cost-effective and stable solution for TV operators to re-distribute programs via HFC network. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems .
This product is mainly used for DVB-T System,CATV headend, wireless system,its called 8×DVB-S2 to 3×DVB-T TransModulator support 8×DVB-S/S2 (QPSK/8PSK) transponders and 1×ASI input, 3 DVB-T frequency output.
.
Specification
Technical Specification
|
Input |
RF |
8×tuner (DVB-S/S2) |
|
ASI |
1×ASI (BNC) |
|
|
Frequency Range |
950~2150 MHz |
|
|
Symbol Rate |
1~45 Msps |
|
|
Output |
Standard |
DVB-T (EN300744) |
|
Transmode |
2K, 8K |
|
|
Bandwidth |
8M (support) 7M (not support) 6M (not support) |
|
|
Constellation |
QPSK, 16QAM, 64QAM |
|
|
Protection Interval |
1/4, 1/8, 1/16, 1/32 |
|
|
Baudrate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
Interface |
RF, F-head |
|
|
Impedance |
75Ω |
|
|
Level Attenuation Range |
-26dbm~+3dbm (0.1db step) |
|
|
Frequency Range |
36~900MHz, 1Khz step |
|
|
MER |
≥ 42db |
|
|
Control |
LCD/Keyboard, network management |
|
|
Ethernet software upgrade |
||
|
General Features |
Size |
482mm×410mm×44mm |
|
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
|
Power |
100-240VAC, 50Hz, 25W |
|
