  IP (MPTS) Encoder

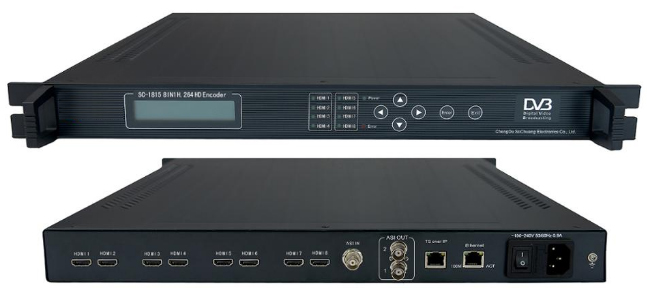

8IN1 MPEG-4 AVC/H.264 HD Encoder (with IP output) supports 8×HD and ASI input, and generates DVB transport stream (TS/ASI) and IP (TS over IP) output. It suits 1U rack and supports1080i/p, 720p and HDCP. Besides, SC-1815 can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.

Features

H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding

8×HD+ASI input

Support HDCP

Support multiple HD formats including 1080i/p and 720p

LCD/Keyboard control by front panel and network management by Ethernet.

This product is mainly used for digital tv headend System, CATV Headend Solution. It's called Eight Channels mpeg4 H.264 HD Encoder/MultiChannel 1080i/P to IP and ASI Converter/DVB Headend,IPTV,HDTV,Streaming server.






Specification

Technical Specification

Input

8×HD



ASI

DVB standard, BNC interface

Video Coding

4:2:0 encoding H.264 HP@L4 MP@L3

H.264 Adaptive Field Frame (AFF)

H.264 Field-Based (FB)

full HD:1920×1080×60/50i/p,1280×720×60p/50p



Standard

ISO/IEC14496-10 (H.264/MPEG-4 AVC)

Audio

Bit rate

64, 128, 192, 256, 384Kbps

Property

MPEG-1 Layer2

Sample Bit rate

32KHz, 44.1KHz, 48KHz

Output

2×ASI

DVB standard, BNC interface

IP

IP/UDP (TS over IP), SPTS/MPTS/Unicast/Multicast

Output Bit rate

1 to 20Mbps (4:2:0) per channel

Control

NMS (Ethernet port, RJ-45), Keyboard + LCD

General Features

Size

482mm×410mm×44mm

Temperature Range

0~45°C (Operation); -20~80°C (Storage)

Power

100-240VAC, 50Hz, 25W














Solutions





.

Model

  IP (MPTS) Encoder



IP (MPTS) Encoder.
