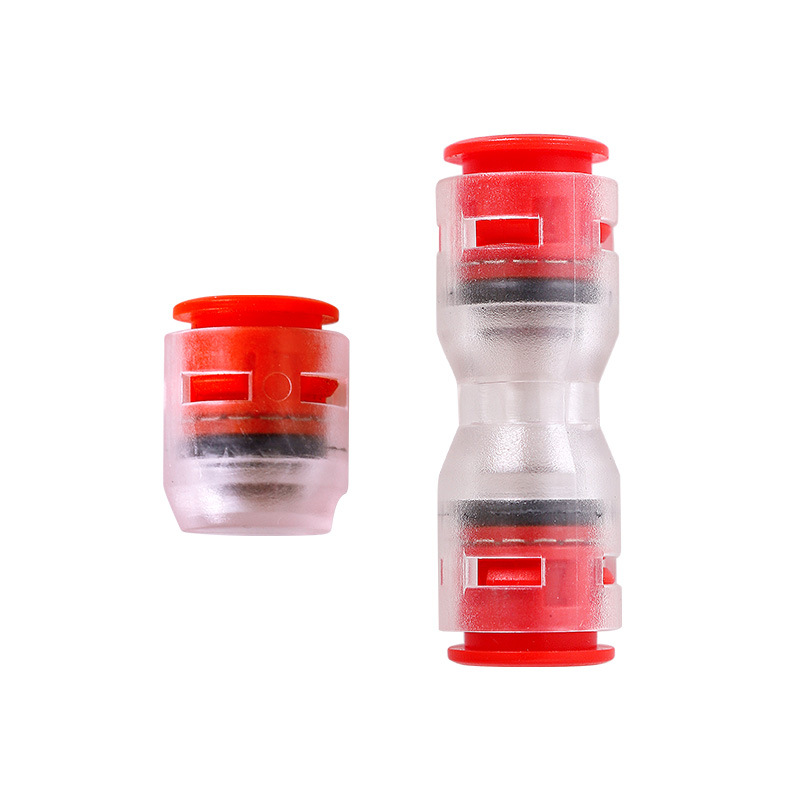

HDPE Micro duct Straight Connector Tube Coupler Telecom for Fiber Optic Cable HDPE Microduct Fittings Connector plug
Short Description:
| Tube to connector | Polyethylene HDPE |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| MAX. Pressure | 28 bar |
| Userful life | 25 years |
| Tube assembly | No tooling required |
| Water ingress test | 0.5 bar during 168 hours |
| Working temperature | -45℃/+50℃ |
| Transport and storage temperature | -10℃/+50℃ |
| Installation temperature | -10℃/+50℃ |
| Recommended blowing temperature | -15℃/+35℃ |
| Outdoor exposure limit @Cetral Europe | 12 months |
| Protection class | IP68 |
| High pressure resistance(safety) | >50bar |
| According to Standards | CEI EN 50411-2-8,EN 50411-2-5 |
| Related documents | EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
| Related documents | ISO 3601,ISO 4397:1993(2000),ISO4399:1995 |
