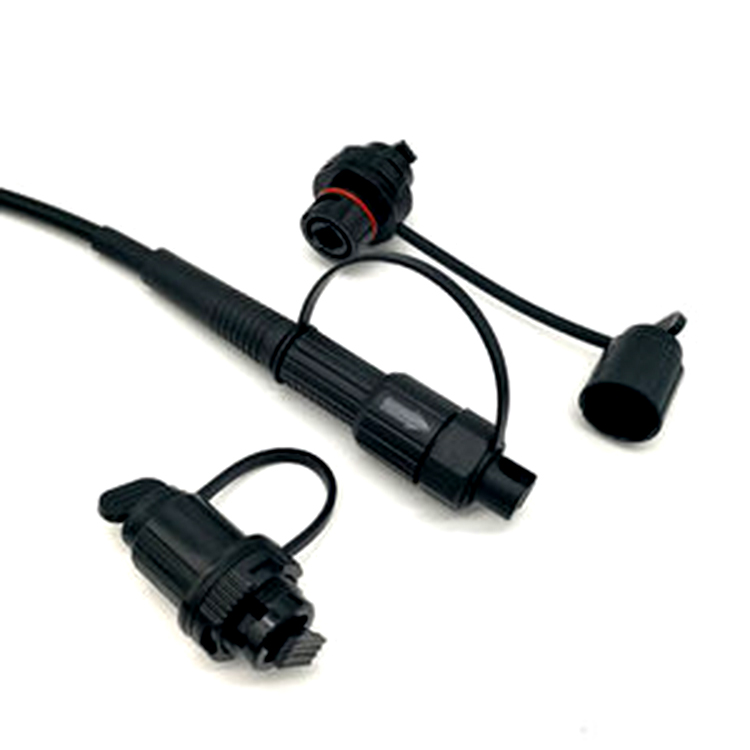

FTTH Waterproof Connectors for Outdoor Fiber patch cord
Short Description:
| InsertionLoss(IL) (IEC 61300−3−4) | |
| MM | |
| SM Super PC | |
| SM Ultra PC | |
| SM Angle PC | SM Angle PC Premiun |
| 0.15dB type | |
| 0.15dB type | |
| 0.15dB type | |
| 0.15dB type | 0.1dB max |
| ReturnLoss(RL) (IEC 61300−3−4) | |
| >30dB | |
| >45dB | |
| >50dB | >60dB* |
| Operating temperature | −40℃ to +50℃ |
| Durability | min 1000 cycles |
| Assemblity | glue and polish |
| Connection | physical contact |
| Lock mechanism | coupling nut and snap−on |
| Standards | Telcordla GR−3120 |
| Ferrule material | full ceramic zirconia |
