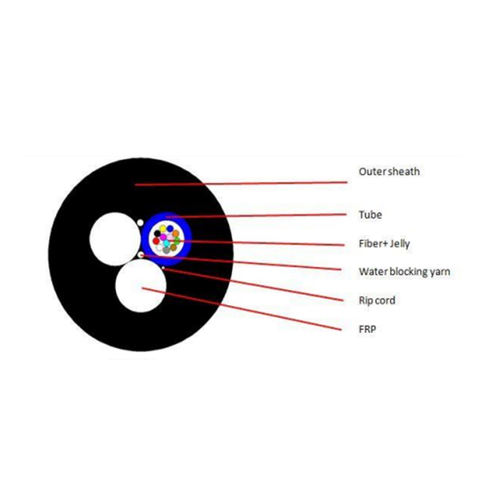

ASU 6 core 12 core G652D HDPE 100M span aerial ASU mini adss cable
Short Description:
| core | |
| Cable diameter | |
| weight | |
| 1~12 core | |
| 6.8±0.3mm | |
| 35±5kg/km | |
| Min Bending Radius(mm) | |
| Long term | |
| 10D | |
| Min BendingRadius(mm) | |
| Short term | |
| 20D | |
| Span | |
| 80m | |
| Min allowableTensile Strength(N) | |
| Long term | |
| 1000 | |
| Min allowableTensile Strength(N) | |
| Short term | |
| 2000 | |
| Min. Allowable Crush Load(N/100mm) | |
| Long term | |
| 300 | |
| Min. Allowable Crush Load(N/100mm) | |
| short term | |
| 1000 | |
| Operationtemperature （℃） | |
| -20+60 | |
| Installationtemperature（℃） | |
| -15+60 | |
| Storage temprature（℃） | |
| 20+60 | |
