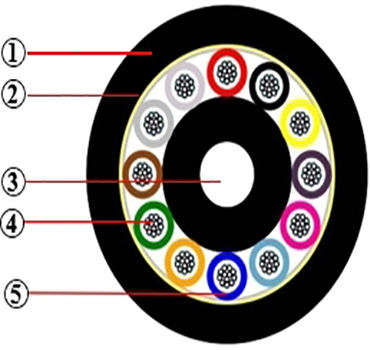

Outdoor Aerial All Dielectric Self Supporting Singlemode Optical Fibre Cable ADSS Cables
Short Description:
| Parameter | |
| Property / Pass criteria | |
| Test Method | |
| Fiber Count | |
| Number of elements | |
| 4 - 48 Fiber Cables | |
| 72 Fiber Cables | |
| 96 Fiber Cable | |
| 144 Fiber Cable | |
| Cable diameter (nominal) | |
| 9.4mm | |
| 10.5mm | |
| 12mm | |
| 15.3mm | |
| Cable weight (nominal) | |
| 65 kg/km | |
| 87 kg/km | |
| 117 kg/km | |
| 184 kg.km | |
| Maximum load using the formula (0.6*9.81*2*Weight) | |
| 765N | |
| 1024N | |
| 1150 N | |
| 2166 N | |
| Maximum installation load (aerial self-support, based on 70m span, 0.8m sag) | |
| 618 N | |
| 850 N | |
| 1562 N | |
| 1810 N | IEC 60794-1-E1 |
| Maximum working load (anticipating no ice, but winds up to 125 km/h) | |
| 1200 N | |
| 1530 N | |
| 1840 N | |
| 2500 N | |
| Crush resistance (via 100 mm plates) | |
| 1200 N | |
| 1500 N | |
| 2000 N | |
| 2000 N | IEC 60794-1-E3 |
| Long term creep test (10 days) | |
| < 0.1% cable length increase | |
| ATC Internal | |
| Cable / Termination clamp compatibility (up to 70 OC) | |
| 100% load transfer | |
| ATC Internal | |
| Minimum bend radius | |
| 12 x Cable Diameter | |
| IEC 60794-1-11 | |
| Impact resistance (25mm anvil / 10 blows) | |
| 2 Nm Blows | |
| IEC 60794-1-E4 | |
| Temperature performance | |
| -10 to +70°C | |
| IEC 60794-1-F1 | |
| Drip test (300 mm sample of loose tube @ 80 OC) | |
| No leakage | |
| IEC 60794-1-14 |
