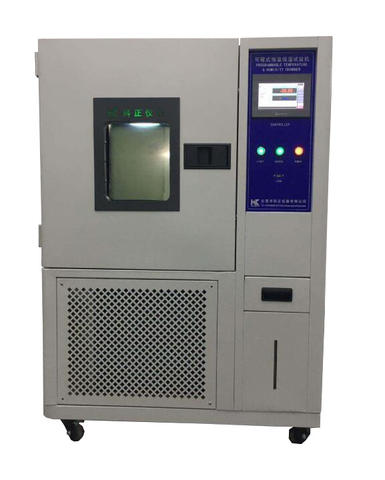

80L mini chamber Constant Humidity Temperature Chamber Tester
Short Description:
| Model | |
| WT-R series | |
| WT-L series | KWT-S series |
| 36R | |
| 36L | 36S |
| Temp. range | |
| -20ºC~150ºC | |
| -40 ºC~+150ºC | -60ºC~+150ºC |
| Interior sizel | |
| W(mm) | |
| 300 | |
| 300 | |
| 300 | |
| H(mm) | |
| 400 | |
| 400 | |
| 400 | |
| D(mm) | |
| 300 | |
| 300 | |
| 300 | |
| Exterior size | |
| W(mm) | |
| 460 | |
| 460 | |
| 460 | |
| H(mm) | |
| 780 | |
| 780 | |
| 780 | |
| D(mm) | |
| 1020 | |
| 1020 | |
| 1020 | |
| Power(KW) | |
| 4.5 | |
| 4.5 | |
| 4.5 | |
| Weight(KG) | |
| 150 | |
| 150 | |
| 150 | |
| Humidity uniformity | |
| ±3.0%R.H | |
| ±3.0%R.H | |
| ±3.0%R.H | |
| Heat up time | |
| -20ºC~+100ºC,within 35 min | |
| -40ºC~+100ºC, within 45 min | -60ºC~+100ºC,within85 min |
| Pull down time | |
| +20ºC~-20ºC, within 45 min | |
| +20ºC~-40ºC , within 60 min | +20ºC~-60ºC,within 80 min |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m |
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, |
| Control System | Balanced Temperature & Humidity Control System |
| Refrigeration system | Air Cooled |
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable |
| Humidity Range | 20~98%R.H |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5%R.H |
| Temp. uniformity | ±2.0ºC |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5ºC~+35ºC |
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires |
