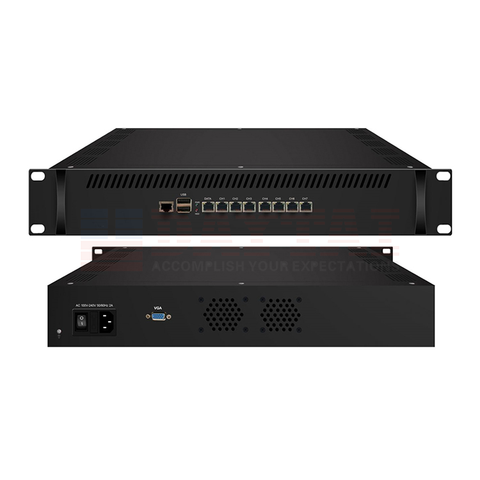

Newest model IPTV Gateway IPTV Server with VOD Source upload for CATV Head-end Hotel TV System
Short Description:
| Item | |
| Specification | |
| IP Input | |
| DATA CH 1-7(1000M) ports: IP input over HTTP, UDP(SPTS),RTP(SPTS),RTSP (over UDP, payload: mpeg TS) and HLS | |
| TS files uploading through Web management | |
| IP output | |
| First Data port (1000M): IP out over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AACencoding) | |
| DATA CH 1-7(1000M) ports: IP out over HTTP/HLS/RTMP (Unicast) | |
| System | |
| DT-IGS-9508S | |
| DT-IGS-9508S-M | DT-IGS-9508I |
| Memory | |
| 4G | |
| 4G | 8G |
| CPU | |
| 1037 | |
| I7 | I7 |
| Solid-State Disk(SSD) | |
| 120G | |
| 120G | 120G |
| Mechanical Hard Disk | |
| 4T | |
| 4T | 4T |
| Play programs with APK downloaded android STB and TV, maximum 150 terminals(See details in below Test data for reference) | |
| About 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shallprevail, and suggest maximum 80% CPU utilization | |
| IPTV system function | |
| support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on | |
| IPTV system main interface | |
| support adding scrolling caption, welcome words, pictures, advertisement, video , music | |
| web-based NMS management thru DATA port | |
| General | |
| Demission | |
| 482.6mm×328mm×88mm (WxLxH) | |
| Temperature | |
| 0~45℃(operation), -20~80℃(storage) | |
| Power Supply | |
| AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
