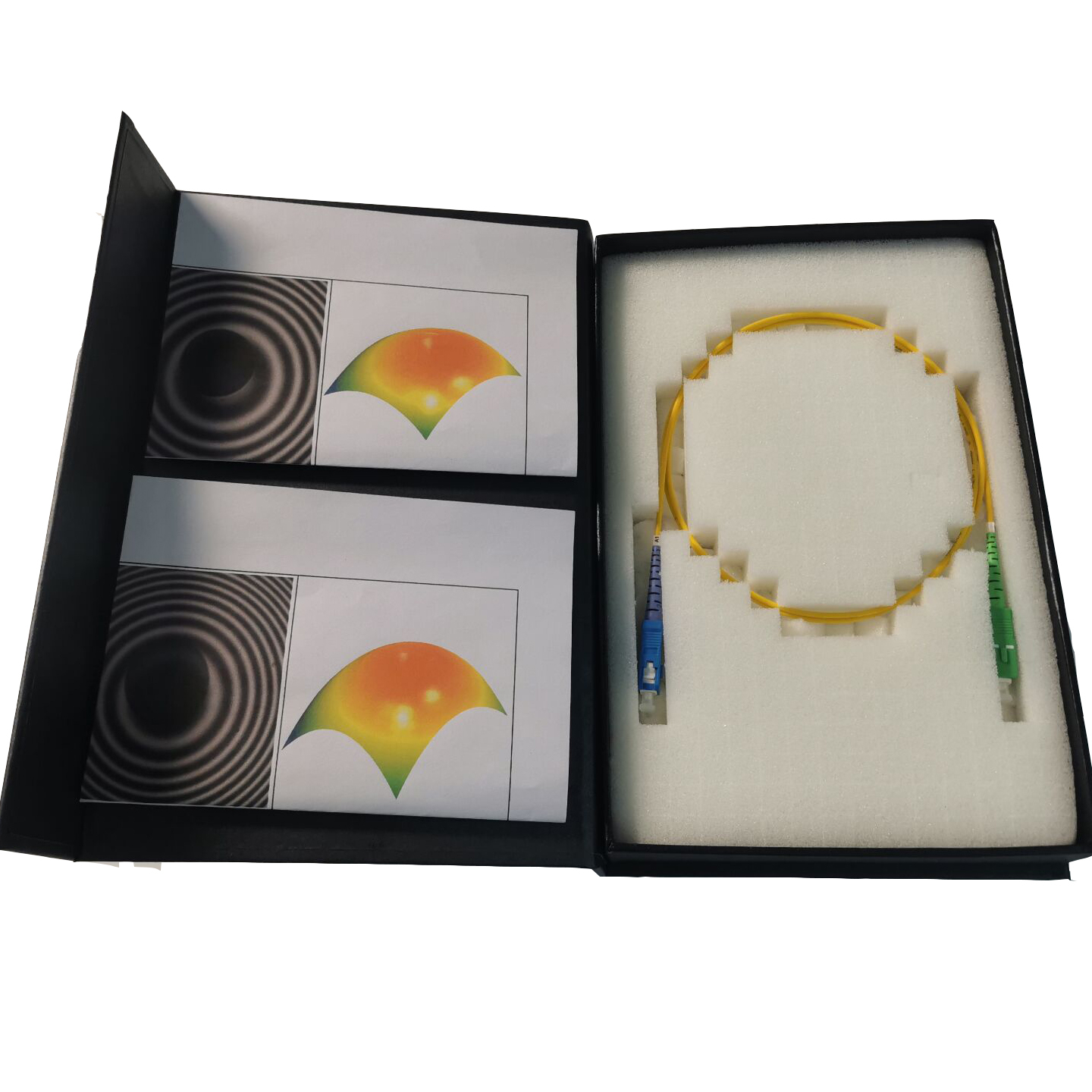

High Precision SM or MM Fiber Opticl Master Reference Patch Cord for Various Connectors with 100% 3D pass rate
Short Description:
| Test Jumpers | |
| Reference SM Patchcord | |
| Master SM Patchcord | |
| Offset Master Patchcord | |
| Side ARef. Connector | |
| Side BStd. Connector | |
| Side AMaster Connector | |
| Side BRef. Connector | |
| Side AOffset Connector | Side BRef. Connector |
| IL [dB]* | |
| < 0.1 | |
| < 0.3( typ.0,22 ) | |
| < 0.1 | |
| < 0.1 | |
| > 0.5 1) | < 0.1 |
| RL (UPC) [dB] | |
| > 50 (typ.55) | |
| > 50 (typ.55) | |
| > 50 (typ.55) | |
| > 50 (typ.55) | |
| > 50 (typ.55) | > 50 (typ.55) |
| RL (APC) [dB] | |
| > 60 (typ.68) | |
| > 60 (typ.68) | |
| > 60 (typ.68) | |
| > 60 (typ.68) | |
| X | X |
| Connector Type | |
| SC, E2000... | |
| SC, E2000... | |
| SC, E2000... | |
| SC, E2000... | |
| SC, E2000... | SC, E2000... |
| Excentricity [μm] | |
| < 0.5 | |
| x | |
| < 0.3 | |
| < 0.5 | |
| > 1.5 & < 5 | < 0.5 |
| Apex Offset [μm] | |
| < 30 | |
| < 50 | |
| < 30 | |
| < 30 | |
| < 50 | < 30 |
| Radius of curvature RC/UPC 2.5 Ferr.[mm] | |
| 10 < RC < 25 | |
| 7 < RC < 25 | |
| 10 < RC < 25 | |
| 10 < RC < 25 | |
| 10 < RC < 25 | 10 < RC < 25 |
| Radius of curvature RC/UPC 1.25 Ferr.[mm] | |
| 7 < RC < 25 | |
| 7 < RC < 25 | |
| 7 < RC < 25 | |
| 7 < RC < 25 | |
| 7 < RC < 25 | 7 < RC < 25 |
| Radius of curvature RC/APC | |
| 5 < RC < 12 | |
| 5 < RC < 12 | |
| 5 < RC < 12 | |
| 5 < RC < 12 | |
| 5 < RC < 12 | 5 < RC < 12 |
| Fiber Height FH [μm] | |
| -50,0 < FH < +50,0 | |
| -125,0 < FH < +50,0 | |
| -50,0 < FH < +50,0 | |
| -50,0 < FH < +50,0 | |
| -125,0 < FH < +50,0 | -50,0 < FH < +50,0 |
| Operating Temperature (standard/extended) [°C] | |
| -20 ~ +70/-40 ~ +85 | |
| -20 ~ +70/-40 ~ +85 | |
| -20 ~ +70/-40 ~ +85 | |
| -20 ~ +70/-40 ~ +85 | |
| -20 ~ +70/-40 ~ +85 | -20 ~ +70/-40 ~ +85 |
| Measured Against | |
| Master | |
| Referential | |
| Master | |
| Master | |
| X | Master |
