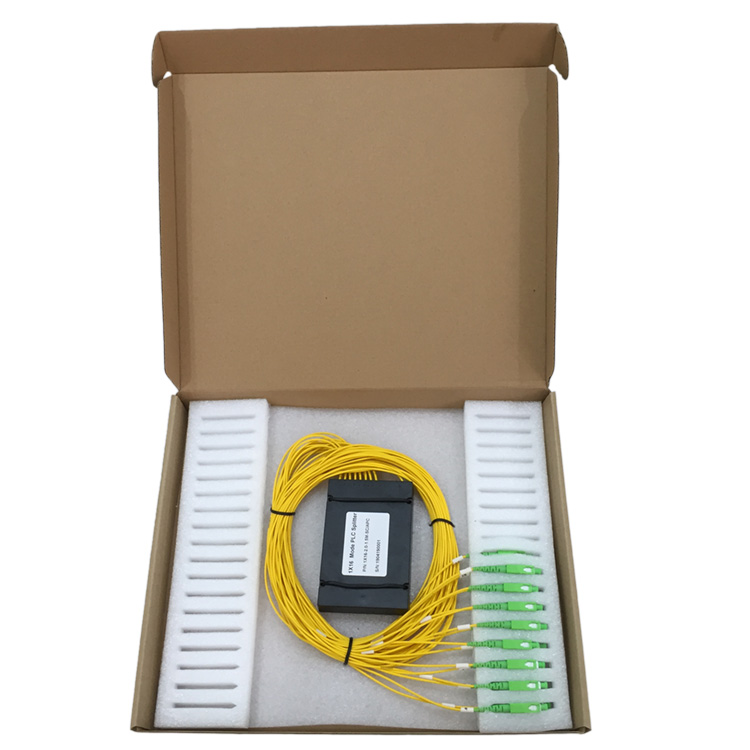

Low Insertion Loss Abs Plastic Box Type Fiber Optical Plc Splitter 1x16 With Sc Upc Connector Plc Splitter without connector
Short Description:
| Parameter | |
| Specification | |
| Operating Wavelength (nm) | |
| 1260--1650 | |
| Test Wavelength (nm) | |
| 1310/1550 | |
| Type | |
| 1 X 2 | |
| 1 X4 | |
| 1X8 | |
| 1X16 | 1X32 |
| Insertion Loss (dB) Max. | |
| 3.8 | |
| 7.1 | |
| 10.2 | |
| 13.5 | 16.5 |
| Loss Uniformit(dB) | |
| ≤0.4 | |
| ≤0.6 | |
| ≤0.8 | |
| ≤1.2 | ≤1.5 |
| PDL (dB) Max | |
| 0.2 | |
| 0.2 | |
| 0.2 | |
| 0.25 | 0.3 |
| Dimensions (H*W*L)(nm) | |
| 60*7*4 | |
| 60*7*4 | |
| 60*7*4 | |
| 60*12*4 | 80*20*6 |
| Directivity (dB) Min | |
| 55 | |
| 55 | |
| 55 | |
| 55 | 55 |
| Return Loss (dB) Min | |
| 55 | |
| 55 | |
| 55 | |
| 55 | 55 |
| Operating Temperature (℃) | |
| -40~+85 | |
| Storage Temperature (℃) | |
| -40~+85 | |
| Fiber Length | |
| >1M | |
| Tube color | |
| Input: white 0.9mm PVC tube 1M / Output:white 0.9mm PVC tube 1M | |
| Fiber Type | |
| G657A1 fiber | |
| Connector Type | |
| None | |
