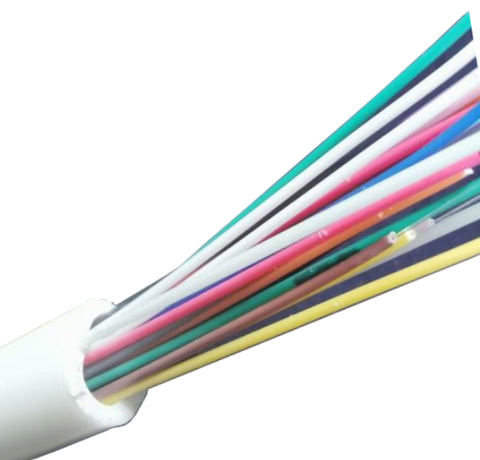

12 core Mini riser fiber optic cable manufacturer for ftth box installation
Short Description:
| No. of cable | |
| 36 | |
| 72 | |
| Fiber Model | |
| G.657A2 | |
| Module | |
| Material | |
| LSZH | |
| Thickness | |
| 0.17（±0.02）mm | |
| Diameter | |
| 0.9（±0.05）mm | |
| Strength Member | |
| Material | |
| FRP | |
| Diameter | |
| 1.0（±0.05）mm | |
| No. | |
| 2 | |
| Outer Sheath | |
| Material | |
| LSZH-FR | |
| Color | |
| White | |
| Cable Diameter | |
| 10.5±0.5 | |
| 11.5±0.5 | |
| Max. allowable tension（Short-term） | |
| 600N | |
| Max. allowable tension（Long-term） | |
| 200N | |
| Crush resistance test | |
| 1000N/10cm | |
| Min. bending radius | |
| Static | |
| 105mm | |
| 115mm | |
| dynamic | |
| 210mm | |
| 230mm | |
| Temperature range（℃） | |
| Installation | |
| -5~+60 | |
| Transport&Storage | |
| -40~+70 | |
| Operation | |
| -5~+60 | |
