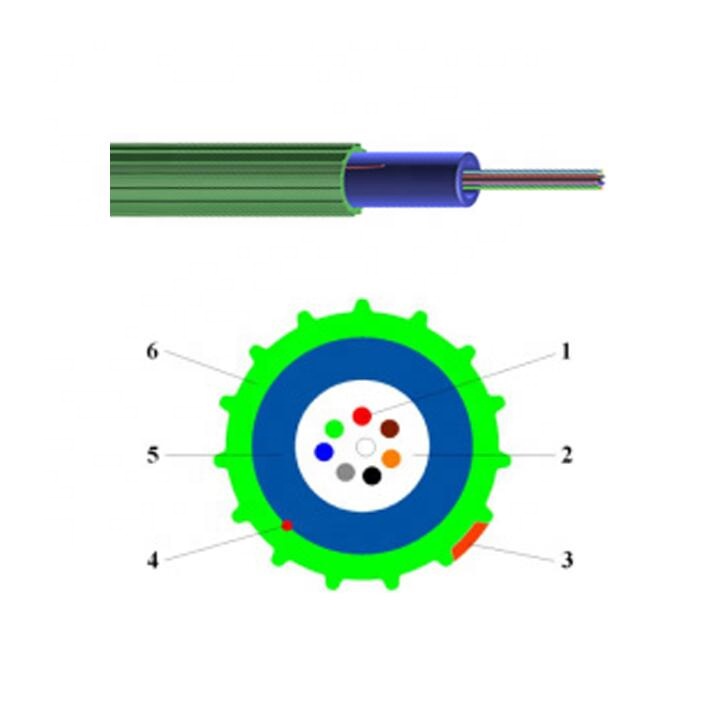

Special Composite Material Loose Tube Air Blown Fiber Optical Cable
Short Description:
| type | GCYFXY-**F(MTE +diameter) |
| fiber type | |
| MTE1.8 | |
| MTE1.8 | |
| MTE2.0 | |
| MTE2.3 | MTE2.8 |
| 2~4 | |
| 2~4 | |
| 6~12 | |
| 2~12 | 14~24 |
| HDPEjacket thickness | standard :0.2mm min:0.15mm |
| standard diamete | |
| 1.8mm | |
| 2.0mm | |
| 2.3mm | |
| 2.5mm | 2.8mm |
| a.p. weight | |
| 2.6kg/km | |
| 4.0kg/km | |
| 5.0km/km | |
| 6.0kg/km | 7.0kg/km |
| fiber attenuation(singlemode) | 1310nm/1550nm≤0.35/0.22dB/km |
| Max tensile | |
| 40N | |
| 40N | |
| 50N | |
| 60N | 60N |
| max crunch | 600N/100mm |
| allowable minstatic / dynamicradious diameter | 10times/20 times cable diameter |
| adapt tem | storage -30~+60℃; operation -10~+40℃; work -20~+50℃ |
| cable life time(appoximate) | 25 years |
