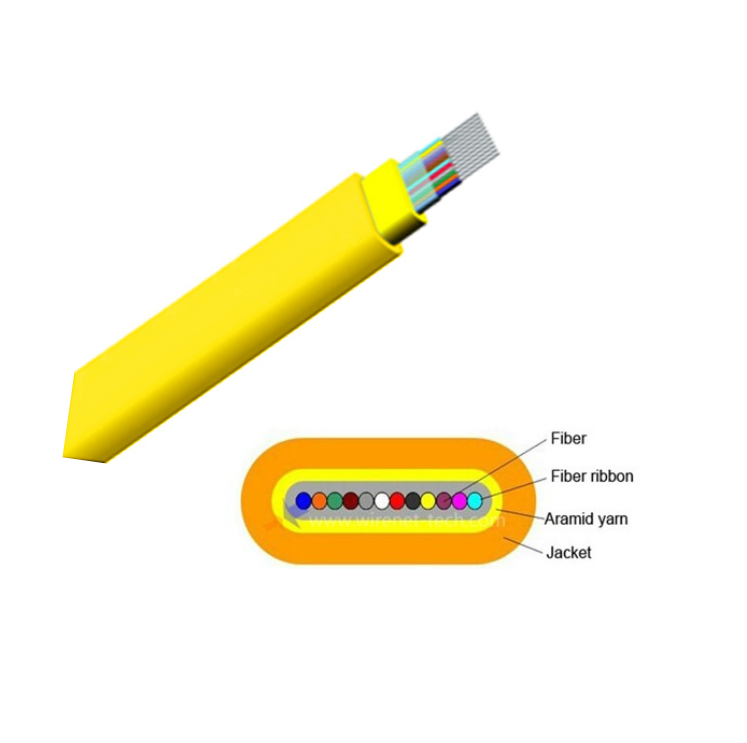

Fibra optica Flat LZSH Optical Fiber Ribbon Cable
Short Description:
| Fiber Count | 4 6 8 12 |
| Outer Diameter D*H(mm) | 3.5*2.5 3.8*2.5 4.5*2.5 5.0*2.5 |
| Nominal Weight(kg/km) | 12 13 15 17 |
| Max.Tension Short-term | 600 |
| (N) Long-term | 200 |
| Min. bending Install | 35H |
| Radius (mm) Static | 25H |
| Max.Crush Resistanse(N/100 mm2) | 500 |
| Temperature Ranges: | -20℃~+70℃ |
