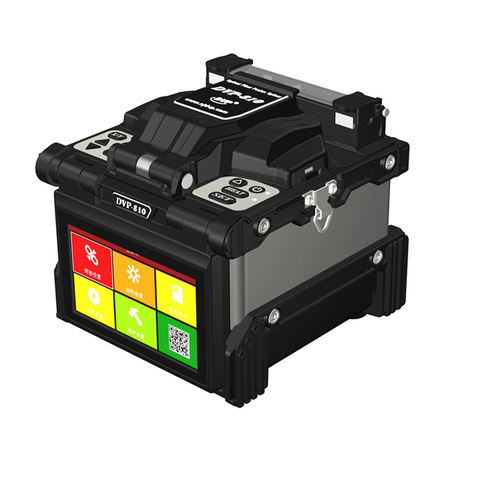

7 Second Splicing time DVP 810 Single Fiber Fusion Splicer with 6 Motors
Short Description:
| Fiber Diameter | Cladding Diameter: 80-150 um; Coating Diameter: 100~1000 um |
| Fiber Cleaver Length | 5-16mm |
| Applicable fibers | SM, MM, DS, NZDS, G655,G657 and SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), IT-657A, IT-G657B;0,25mm, 0,9 mm, 2.0mm, 3.0 mm, FLAT (indoor cable) |
| Splice loss | 0.01dB(MM),0.02dB(SM),0.05dB(DS/NZDS/G.655/G.657) |
| Return loss | 60dB |
| Tension test | 2.0N |
| Protection sleeve length | 25mm,40mm,50mm |
| Splice length: | 5-16 mm for covers diameter < 0,25 mm ; >16 mm for covers diameter > 0,25 mm; |
| Splicing program | 7 Set program and 73 user programable program |
| Language | Chinese, English,French,Korean,Russia,Spanish..... |
| Alignment | Core Alignment(PAS Technology) |
| Interface | USB, suitable for data download and software update |
| Splice Memory | 20000 |
| Electrode Span | At least 5000 times |
| Operating Temp | -18℃~50℃ |
| Storage Temp | -40℃~80℃ |
| Window Protection | Max. wind velocity of 15m/s |
| Power Supply | Internal Li-Battery, 12V/6.5AH ,AC input voltage 100 to 240V |
| Dimension | 152mm(D)*142mm(W)*140mm(H) |
| Weight | 1.95KG(Include battery) |
| Standard package | Main body,Fiber Stripper,Charger,Electrode,Cooling Tray,Manual,Carry Case,Fiber Cleaver |
