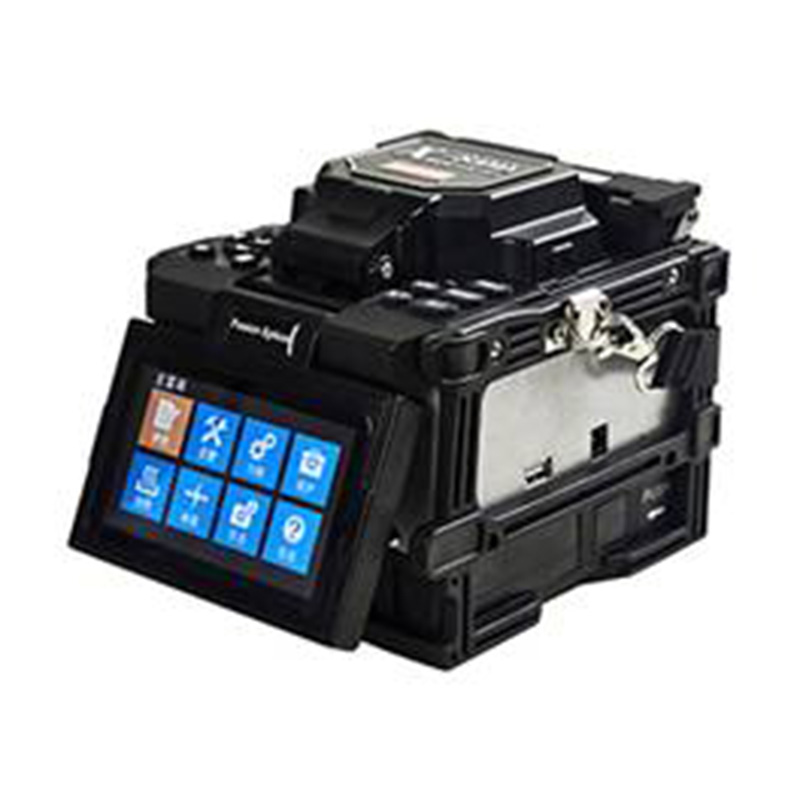

Shockproof Dustproof Fibra Optica Fusion Splicer Fiber Optic Splicing Machine
Short Description:
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) |
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160 – 900μm |
| Typical splice loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB |
| Return loss | >60db |
| Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
| Splicing program | 40 groups |
| Operate mode | Manual, Automatic |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Tube heating time | 20 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing method and display | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Storage of splice result | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easier operation |
| Battery capacity | 5200mAh Li-battery, typical 250 cycles(splice and tube heat) |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminals | USB 2.0 port, for uploading splice results and upgrading software |
| Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s |
| Dimension | 160mm(L)x136mm(W)x140mm(H) |
| Weight | 2.10kg including battery |
| Package | Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg |
