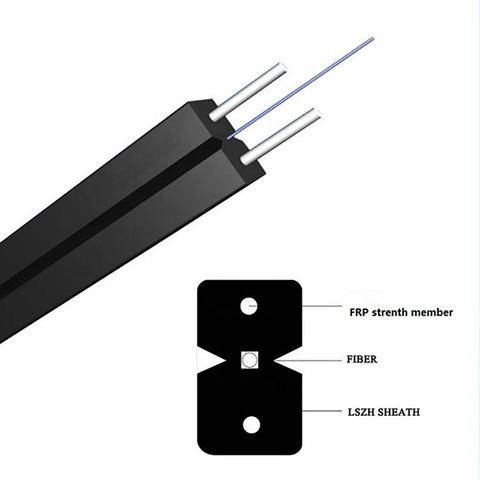

2 4 Core FTTH Figure 8 Flat Drop Fiber Optic Cable G657A1 GJYXCH
Short Description:
| NO | |
| Item | Specifications |
| 1 | |
| Fiber | G652D,G.657A |
| 2 | |
| Cladding Diameter (μm) | 125±0.7 |
| 3 | |
| Cladding non-circularity (%) | ≤0.7 |
| 4 | |
| Core-cladding concentricity error (μm) | ≤0.5 |
| 5 | |
| Mode field Diameter @1310 (μm) | (8.6~9.5)±0.4 |
| 6 | |
| Cladding -coating concentricity error (μm) | ≤12.0 |
| 7 | |
| Coating Diameter(μm) | 245±0.5 |
| 8 | |
| Fiber Cutoff Wavelength (nm) | λccf ≤1260 |
| 9 | |
| Attenuation(max.) (dB/km) | |
| 1310nm | ≤0.4 |
| 1550nm | ≤0.3 |
