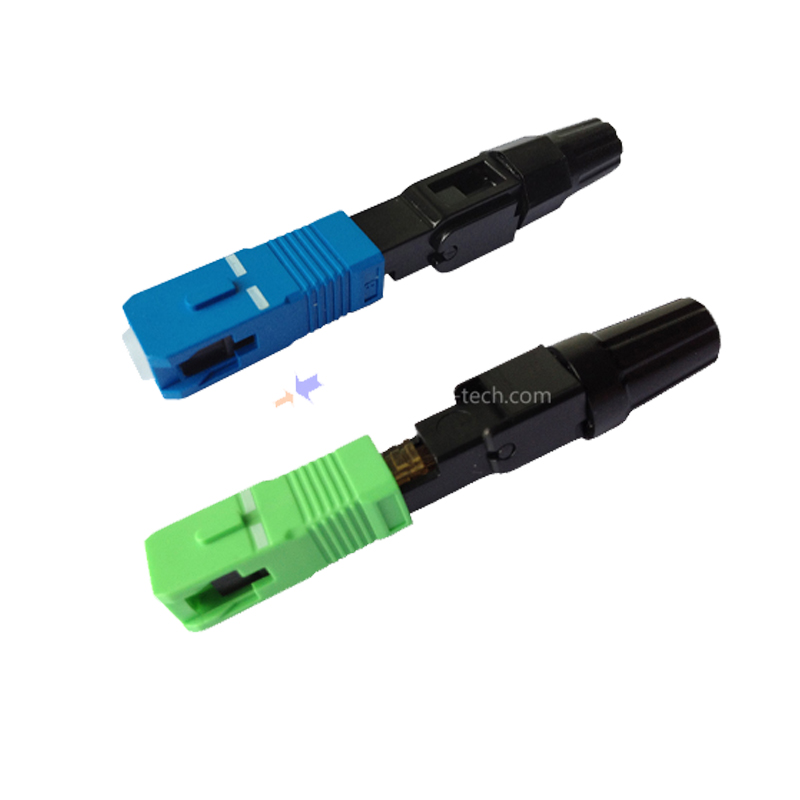

Renewable assembly quick sc st lc upc apc sm fiber optic ftth fast field connector
Short Description:
| Applicable for | 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
| Optical fiber diameter | φ125um (657A&657B) |
| Tight buffer diameter | φ250um |
| Fiber mode | Single mode |
| Operation time | About 10s (exclude fiber cut) |
| Insert loss | ≤0.3dB (1310nm & 1550nm) |
| Return loss | ≥45dB |
| Fastening strength of naked fiber | ≥ 5N |
| Tight clamping force cladding | ≥ 8N |
| Tensile strength | ≥ 50N |
| Using temperature | -45°C~+80°C |
