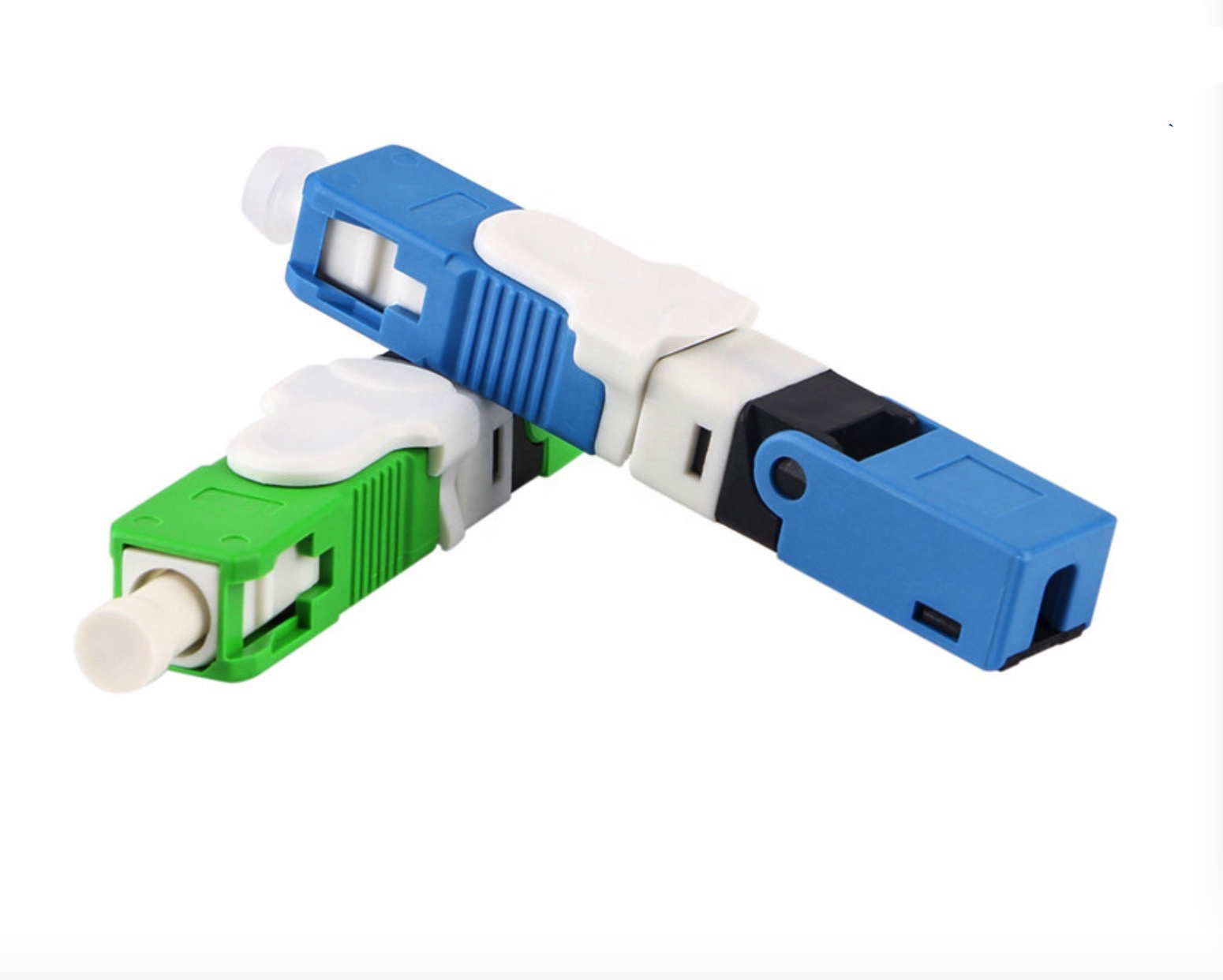

E-SC250D Mechanical Optical fiber quick connector SC/UPC Fast Connectors For FTTH Drop Cable
Short Description:
| Item | |
| Parameter | |
| Cable Scope | |
| 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable | |
| Size | |
| 51*9*7.55mm | |
| Fiber Diameter | |
| 125μm ( 652 & 657 ) | |
| Coating Diameter | |
| 250μm | |
| Mode | |
| SM | |
| Operation Time | |
| about 15s(exclude fiber presetting) | |
| Insertion Loss | |
| ≤ 0.3dB(1310nm & 1550nm) | |
| Return Loss | |
| ≤ -50dB for UPC, ≤ 55dB for APC | |
| Success Rate | |
| >98% | |
| Reusable Times | |
| >10 times | |
| Tighten Strength of Naked Fiber | |
| >5 N | |
| Tensile Strength | |
| >50 N | |
| Temperature | |
| -40 ~ +85 C | |
| On-line Tensile Strength Test (20 N) | |
| IL ≤ 0.3dB | |
| Mechanical Durability(500 times) | |
| IL ≤ 0.3dB | |
| Drop Test(4m concrete floor, once each direction, three times total) | |
| IL ≤ 0.3dB | |
