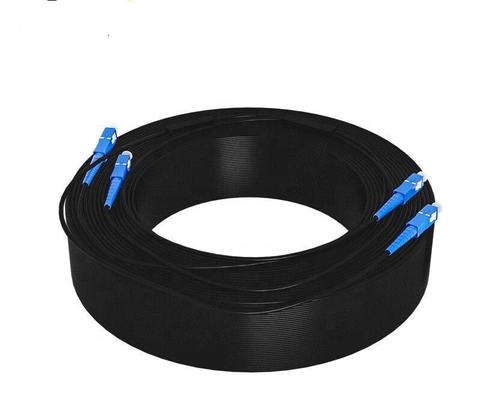

FTTH 1 Core SC UPC Simplex SX LSZH G657A1 drop Fiber Patch Cord
Short Description:
| NO | |
| Item | Specifications |
| 1 | |
| Cladding Diameter (μm) | 125±0.7 |
| 2 | |
| Cladding non-circularity (%) | ≤0.7 |
| 3 | |
| Core-cladding concentricity error (μm) | ≤0.5 |
| 4 | |
| Mode field Diameter @1310 (μm) | (8.6~9.5)±0.4 |
| 5 | |
| Cladding -coating concentricity error (μm) | ≤12.0 |
| 6 | |
| Coating Diameter(μm) | 245±0.5 |
| 7 | |
| Fiber Cutoff Wavelength (nm) | λccf ≤1260 |
| 8 | |
| Attenuation(max.) (dB/km) | |
| 1310nm | ≤0.4 |
| 1550nm | ≤0.3 |
| 9 | |
| Bend Loss (dB) | |
| Bend Radius | |
| 10 | 15 |
| Bend Turns | |
| 1 | 10 |
| 1550nm | |
| ≤0.75 | ≤0.25 |
| 1625nm | |
| ≤1.5 | ≤1.0 |
