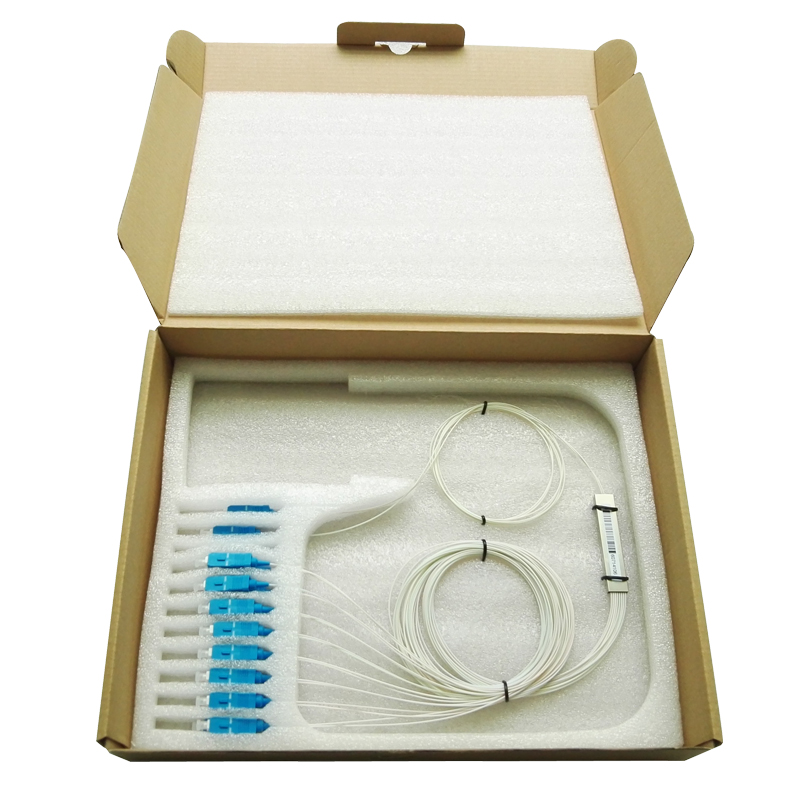

Mini Module Box 0.9mm Fiber Optic 2x16 PLC Splitter without connector optical fiber PLC Splitter with connector
Short Description:
| Parameters | |
| Specifications | Units |
| Channel Number | |
| 2x16 | |
| Operation Wavelength | |
| 1260~1650 | nm |
| Insertion Loss | |
| ≤14.4 | dB |
| Uniformity | |
| ≤1.2 | dB |
| Polarization Dependent Loss | |
| ≤0.2 | dB |
| Return Loss | |
| ≥55 | dB |
| Directivity | |
| ≥55 | dB |
| Fiber Type | |
| G657A1 | |
| Pigtail Type | |
| Input:0.9mm loose tube | |
| Output: 0.9mm loose tube | |
| Input Length | |
| 1.0+0.1 | m |
| Output Length | |
| 1.0+0.1 | m |
| Connector Type | |
| SC/UPC 0.9mm | |
| Tube Color | |
| Input:White | |
| Output: White | |
| Package Dimension | |
| (L)x(W)x(H):60x7x4 | mm |
| Operating Temperature | |
| -40~+80 | ℃ |
| Storage Temperature | |
| -40~+85 | ℃ |
