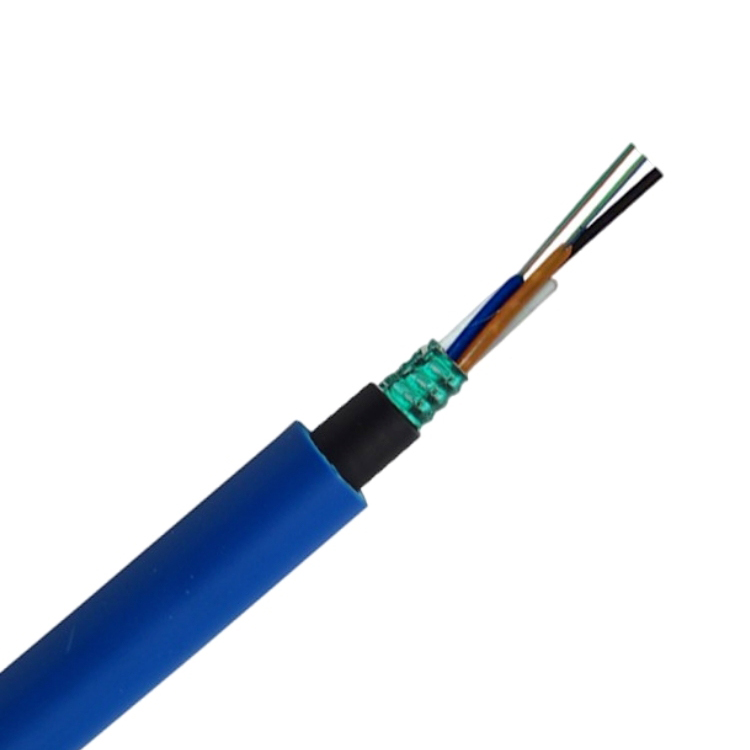

Mgxtsv Mgtsv Explosion-proof Flame Retardant Underground Fiber Optical Cable 4 Core Explosion proof Fiber Cable
Short Description:
| No . of tube | |
| 1 tube | |
| PBT Loose tube | |
| Diameter | |
| 2.0mm(±0.05) | |
| Color | |
| white | |
| Thickness | |
| 0.3mm | |
| No. of fiber /Tube | |
| 4 fibers/ tube | |
| Tube color | |
| white | |
| Fiber diameter | |
| 0.25mm bare fiber | |
| Fiber color | |
| Blue Orange Green Brown | |
| Filling Compound tube | |
| Thixotropic jelly. (LTQ-039) | |
| Strength member | |
| Corrugate steel tape | |
| Cable Mechanical characteristic | |
| item | |
| Cable diameter | |
| Weight | Weight |
| 4 cores | |
| 10±0.3mm | |
| 80±10kg/km | |
| Installation Temperature range | |
| -15--+60℃ | |
| Operation and transport temperature | |
| -40-+70℃ | |
| Min Bending Radius(mm) | |
| Long term | |
| 10D | |
| short term | |
| 20D | |
| Allowable Tensile Strength(N) | |
| Long term | |
| 800 | |
| short term | |
| 1900 | |
| Crush Load (N/100mm) | |
| Long term | |
| 500 | |
| short term | |
| 1200 |
