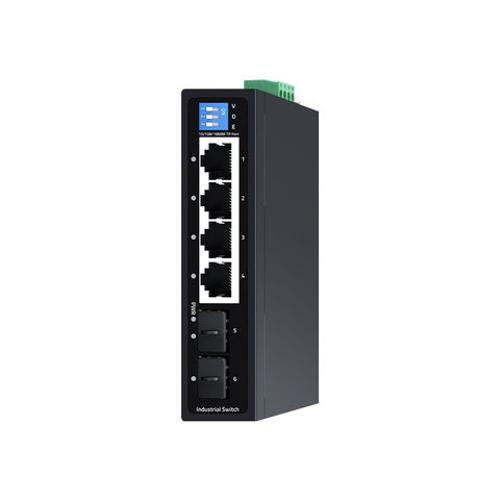

Industrial Gigabit Ethernet Switch 4 Port 1000Mbps RJ45 Port 2 Gigabit SFP Port DIN Network Ethernet Switch Lightning Protection
Short Description:
| Power | DC (12-55V) |
| Ethernet Port | 4* 100M RJ45 Ports2*Gigabit SFP Ports |
| Bandwidth | 12Gbps |
| PackageForwarding Rate | 8.928Mpps |
| MAC Address | 1K |
| Jumbo frame | 9.6Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 HOURS |
| Network Protocols | IEEE802.3IEEE802.3iIEEE802.3uIEEE802.3abIEEE802.3z |
| Network Media | 10BASE-T: Cat5 or more UTP(≤100 m)100BASE-TX: Cat5 or more UTP(≤100 m)1000BASE-TX: Cat5 or more UTP(≤100 m) |
| Fiber Media | Multi-mode:850nm,1310nm. transmission distance:550m/2KmSingle-mode : 1310nm , 1550nm. transmission distance :20/40/60/80/100/120Km |
| Safety Certificate | CE ,FCC,ROHS |
| WorkingEnvironment | Operating Temperature: -40~75℃Storage Temperature: -40~85℃Humidity: 5%~95 %( non-condensing) |
| LED indicator | PWR,1-6 Green |
| PWR | Steady on: The device is powered onOff: The device is not powered on |
| 1-6 Green | Steady on: The port is connected normallyBlinking: port data transferOff: Port not connected |
| DIP Function | V,G,E(open up, close down) |
| V | V: VLAN mode, ports 1-4 are isolated, and both communicate with ports 5 and 6 |
| G | G: Normal mode |
| E | E: Extension mode, ports 1-4 are reduced to 10M, which can be extended to 250 Meters |
| Specification Size | Product Size:120*87*30 mmPacking size: 175*130*55mmProduct net weight: 0.441 KGProduct gross weight: 0.530 KG |
| Packing Info | Outer box size: 540*290*375mmPacking quantity: 40 PCSPacking weight: 22.2KG |
| Voltage | Voltage input: DC12~55VPower wiring: 4 PIN industrial terminals (redundant V1+V1-,V2+V2-) / DC 2.1 |
| Packing List | industrial Switch: 1 unitUser Guide:1unitCertificate warranty card:1unitMounting ears: 1 pair |
