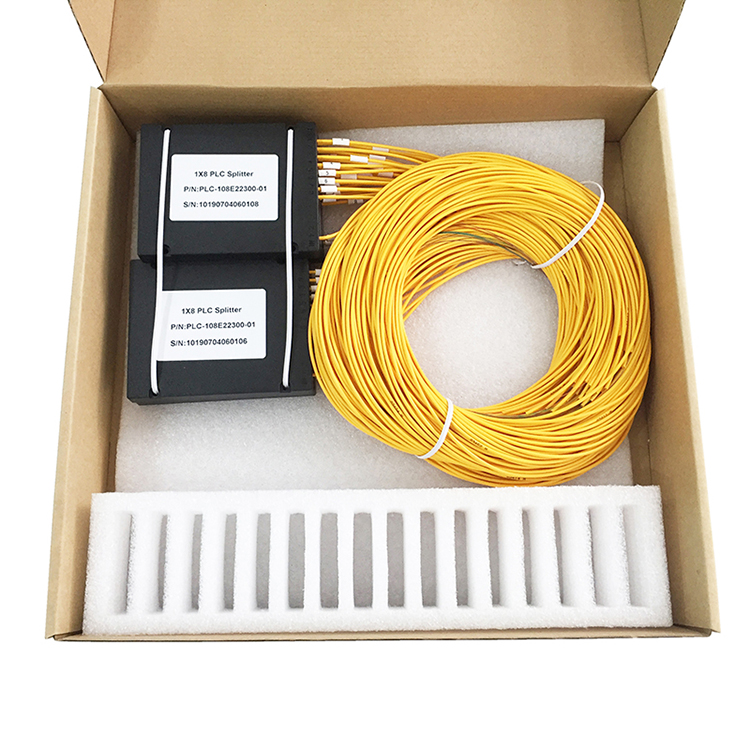

Optical fiber 1 2 4 8 12 16 32 way Fiber Optic Coupler PLC Splitter without connector

Short Description:


Product Detail

Parameters
1×2
1×4
1×8
1×16
1×32
1×64 1×128
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0 23.8/24.2
Loss Uniformit(dB)
0.4
0.6
0.8
1.2
1.5
2.0 2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35 0.4
Return Loss(dB)(P/S Grade)
55/50
55/50
55/50
55/50
55/50
55/50
55/50
Directivity(dB)
55
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Stability (-40~85℃)(dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Operating Temperature(℃)
-40~+85
Storage Temperature(℃)
-40~+85
Device Dimension(mm)
40×4×4
40×4×4
40×4×4
50×7×4
50×7×4
60×12×4 N/A
Module Dimension(mm)
100×80×10
120×80×18
141×115×18
Mini-Module Dimension(mm)
50×7×4
60×12×4
80×20×6
100×40×6 N/A

xxxxxxx.
