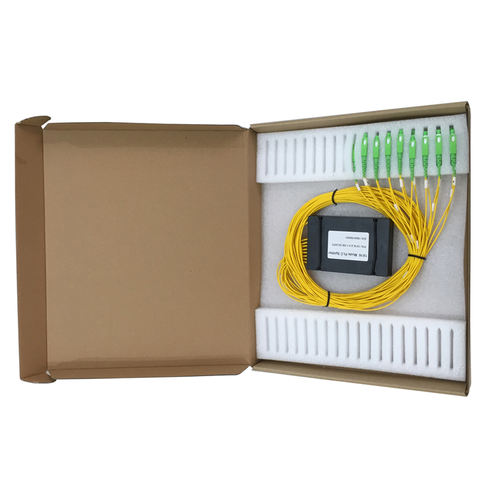

FTTH Fiber Optic Equipments 1x4 1x8 1x16 1x32 1x64 1260-1650nm Optical PLC Splitter
Short Description:
| Parameters | |
| Specifications | Units |
| Channel Number | |
| 2x4 | |
| Operation Wavelength | |
| 1260~1650 | nm |
| Insertion Loss | |
| ≤7.9 | dB |
| Uniformity | |
| ≤1.2 | dB |
| Polarization Dependent Loss | |
| ≤0.3 | dB |
| Return Loss | |
| ≥50 | dB |
| Directivity | |
| ≥55 | dB |
| Fiber Type | |
| G657A1 | |
| Pigtail Type | |
| Input:0.9mm loose tube | |
| Output: 0.9mm loose tube | |
| Input Length | |
| 1.0+0.1 | m |
| Output Length | |
| 1.0+0.1 | m |
| Connector Type | |
| SC/UPC 0.9mm | |
| Tube Color | |
| Input:White | |
| Output: White | |
| Package Dimension | |
| (L)x(W)x(H):60x7x4 | mm |
| Operating Temperature | |
| -40~+85 | ℃ |
| Storage Temperature | |
| -40~+85 | ℃ |
| Weight | |
| 0.3 kg / 6pc | |
| Volume | |
| 32x24x7 cm / 6pc |
