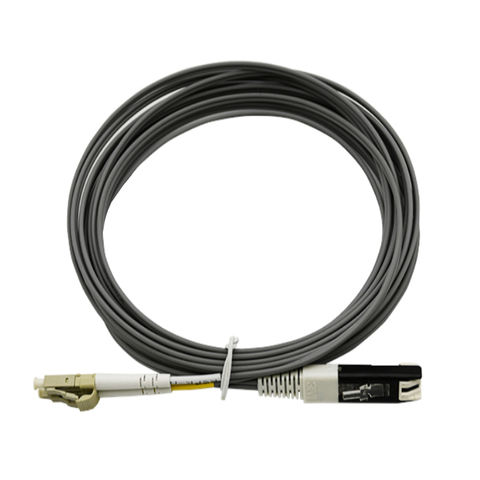

1 2 10 meter MM 50/125um Single Mode multimode Duplex VF45 to LC Patch Cord Optical SC LC FC ST connector Fiber Optic Patch Cord
Short Description:
| Model | |
| SM | MM |
| Connector A:MPO/MTP | |
| Connector Fiber Count | |
| 8,12,24,48 Core | |
| Polish | |
| PC,APC | PC |
| Insertion Loss | |
| Standard | |
| ≤0.70dB | ≤0.50dB |
| Elite Low Loss | |
| ≤0.35dB | ≤0.30dB |
| Return Loss | |
| PC≥50dB,APC≥60dB | ≥30dB |
| Durability(500 Matings) | |
| ≤0.2dB | |
| Test Wavelength | |
| 1310/1550nm | 850/1300nm |
| Connector B:LC,LC Uniboot,SC,FC,ST | |
| Polish | |
| PC,APC | PC |
| Insertion Loss | |
| ≤0.2dB | ≤0.2dB |
| Return Loss | |
| PC≥50dB,APC≥60dB | ≥35dB |
| Durability(500 Matings) | |
| ≤0.2dB | |
| Test Wavelength | |
| 1310/1550nm | 850/1300nm |
