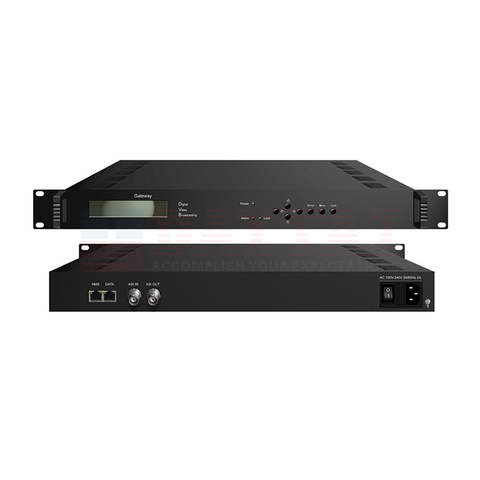

Gigabit Ethernet DVB-ASI Stream over IP Based Network Bi-directional IP Gateway
Short Description:
| Item | |
| Specification | |
| ASI to IP | |
| Input | |
| 1 ASI input (BNC) | |
| Output | |
| 1 IP over UDP/RTP output (RJ 45) | |
| IP to ASI | |
| Input | |
| 1 IP over UDP/RTP input (RJ 45) | |
| Output | |
| 1 ASI output (BNC) | |
| NMS port | |
| To connect PC and device management;To output IP signal (multicast only) | |
| DATA port | |
| To input/output IP (unicast/multicast )signal, 100M Base-T Ethernet interfaceUsed as NMS port and auto generate IP address | |
| General | |
| Management | |
| LCD/Key board; Web NMS | |
| Dimension | |
| 44mm*482mm*433mm | |
| Environment | |
| 0-45℃ (Working) ; -20~80℃ (Storage) | |
| Power supply | |
| 220V AC±10%, 50Hz 25W |
