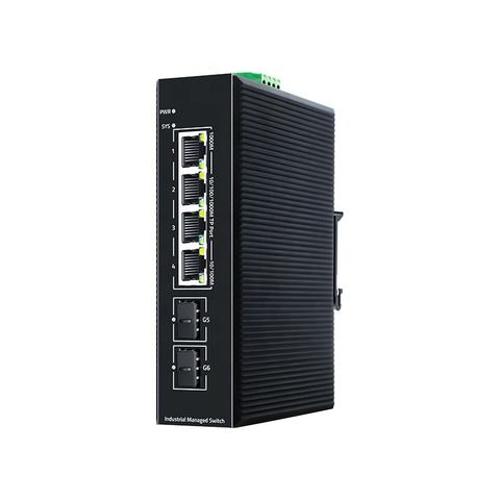

6 Port Gigabit Industrial Managed Switch 1000Mbps DIN Rail Network Ethernet Switcher 2 Port 2.5G SFP L2 Web Management
Short Description:
| Port Definition | 4 Gigabit Ports +2 *2.5G SFP Port (compatible with 1.25G/155M) + 1 Console port |
| Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.1d IEEE802.1w |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) |
| Fiber Media | Multi-mode:850nm,1310nm Transmission Distance: 550m/2Km Single-mode:1310nm,1550nm Transmission Distance: 20/40/60/80/100/120Km |
| LED Indicator | |
| PWR | Lighting:Powered Un-Light:No Power |
| SYS | Lighting:System is operating normally Un-Light:System is not running |
| Yellow light | Lighting:1000M Link Un-Light:Link disconnect Flashing:Link data transmission |
| Green light | Lighting:10/100M Link normally Un-Light:Link disconnect Flashing:Link data transmission |
| G5-G6 | Lighting:Fiber Connection is Normal Un-Light:Disconnect Flashing:Link data transmission |
| Power Supply | Input Voltage: DC12~55V Type of input: 4 PIN Industrial Terminal(block V1+V1- V2+ V2-) |
| Physical structure | Protect grade: IP40 Installation:DIN Rail Product weight:0.6KG Package weight :0.8 KG(Without power) Product Dimensions (L×W×H): 145mm×108mm×40 mm Package Dimensions (L×W×H): 245mm×190mm×60mm Standard packing(L×W×H): 520mm× 320 mm× 400mm Standard packing quantity:20 (PCS) |
| Working Environment | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Humidity: 5%~95 % ( No condensation) |
| Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| Certification | CE , FCC , ROHS |
| MTBF | 100,000 hours |
| Packing list | Industrial grade switch: 1 Set Instruction manual: 1 PCS Certificate, warranty card: 1 PCS Serial cable:1PCS |
| Bandwidth | 18Gbps |
| Packet Forwarding Rate | 13.39Mpps |
| RAM | 128MB |
| Flash | 16MB |
| Packet Buffer Memory | 4M |
| Jumbo frame | 9.6Kbytes |
| VLANs | 4096 |
| MAC | 8K |
