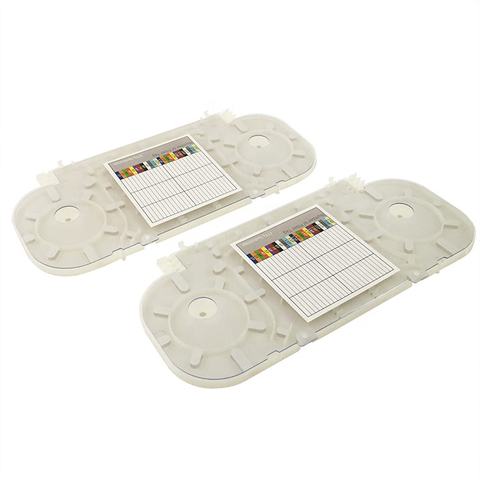

High Density Ultrathin 24 core Fiber Optic Splice Tray with Cable Management
Short Description:
| Size | 245 x 117 x 6 mm |
| Cover | transparant |
| Material | flame retardant or non-flame retardant |
| Maximum size | 24 core |
| Operating temperature | -5℃~40℃ |
| Relative humidity | ≤85% (30℃) |
| Atmospheric pressure | 70~106Kpa |
| Nominal operating wavelengths | 850nm, 1310nm, 1550nm |
| Return loss | PC≥40dB, UPC≥50dB, APC≥60dB |
| Electrical strength | ≥3KV(DC)/1min |
