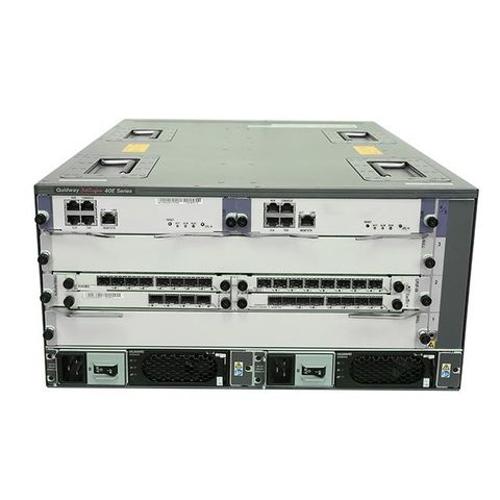

large capacity 40G NE40E series Network router NE40E-X3
Short Description:
| Number of Slots | |
| 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs | |
| 11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs | 5 slots (for 3 LPUs and 2 MPUs) |
| Dimensions (W x D x H) | |
| 442 mm x 650 mm x 1,420 mm (32U) | |
| 442 mm x 650 mm x 620 mm (14 U) | 442 mm x 650 mm x 175 mm (DC, 4U) 442 mm x 650 mm x 220 mm (AC, 5U) |
| Power Consumption (in full configuration) | |
| 4,610W (120G) 7,970W (240G) | |
| 2,340W (120G) 4,100W (240G) | 1,070W (AC) 920W (DC) |
| Weight (in full configuration) | |
| 246 kg (120G) 279 kg (240G) | |
| 119 kg (120G) 136 kg (240G) | 42 kg (DC) 52 kg (AC) |
| Interface Types | 100 GE/40 GE 10 GE LAN /WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1c POS Channelized STM-4 Channelized OC-3/STM-1 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/CT3 CE1/CT1 E1/T1 |
| Layer 2 Features | IEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) 1483B and filtering list based on MAC addresses and ports |
