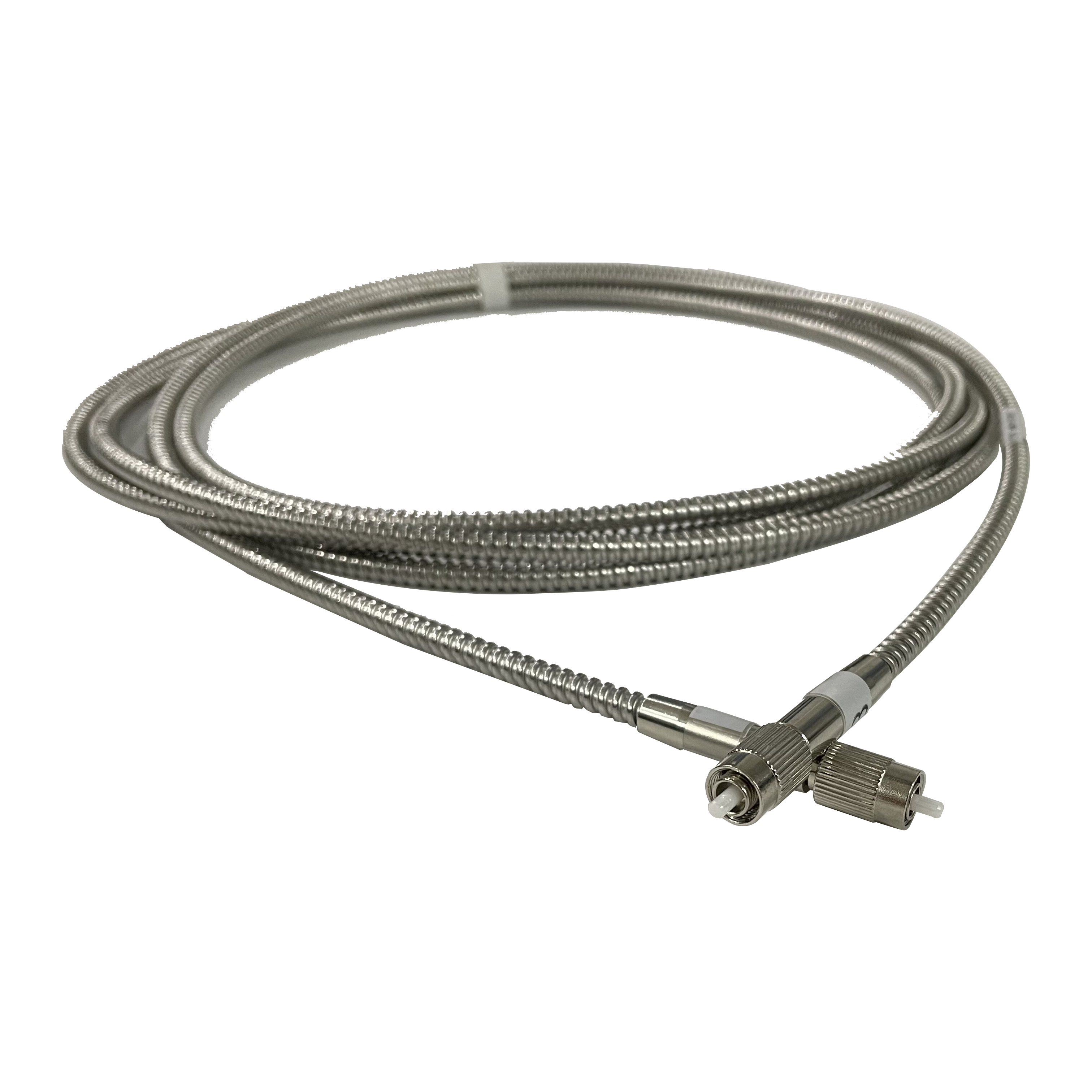

Laser Transmission big core diameter stainless steel sheath metal visible-NIR range 105um FC High power fiber patch cord
Short Description:
| Fiber type | |
| BGWU-105/125-245-22-AC | BGIR-400/440-700-22-AC |
| N/A | |
| 0.22±0.02 | 0.22±0.02 |
| core diameter | |
| 105±2 | 400±5 |
| cladding diameter | |
| 125±2 | 440±5 |
| coating diameter | |
| 245±10 | 700±20 |
| core concentricity | |
| ≦2 | ≦3 |
| Working Temperature | |
| -40~85℃ | -65~300℃ |
| Wavelength | |
| 400~2500nm | |
| Material | |
| silica fiber |
