 Huawei MA5608T Gpon/EPON  OLT

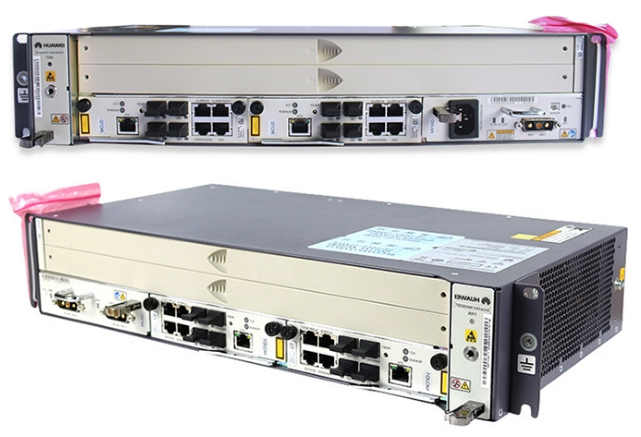

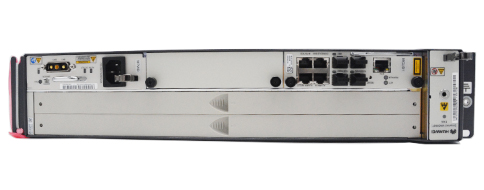

Huawei MA5608T Original Mini 2U 32port GPON OLT GPBD GPFD

he MA5608T Mini OLT is designed to address Fiber to the premise (FTTP) or deep fiber deployment scenarios where a large OLT chassis may not be the best fit for a variety of reasons. Huawei’s mini OLT MA5608T is designed to be the perfect complement to the other MA5600 series larger OLTs and offers the same carrier grade features and performance.
MA5608T’s compact and front access design make it an ideal solution for deployments in locations such as space-constrained huts, outdoor cabinets or building basements. It has AC and DC powering options,extended temperature range, and offers easy installation.
Designed to support ever-increasing bandwidth demand, MA5608T has 200 Gbps backplane. The combination of the high-capacity and line interfaces with best-in-class performance allows the operators to deliver a range of services for maximum revenue at highly competitive cost points.

The MA5608T shares the same product architecture with the MA5600 series OLTs to allow seamless network growth.

The MA5608T, if serving as a mini-OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and provides Internet access, voice, and video services.

· Deployed at the remote end, including the base stations (BSs) and outdoor environments
· 2 U high, and supports a maximum of two service boards

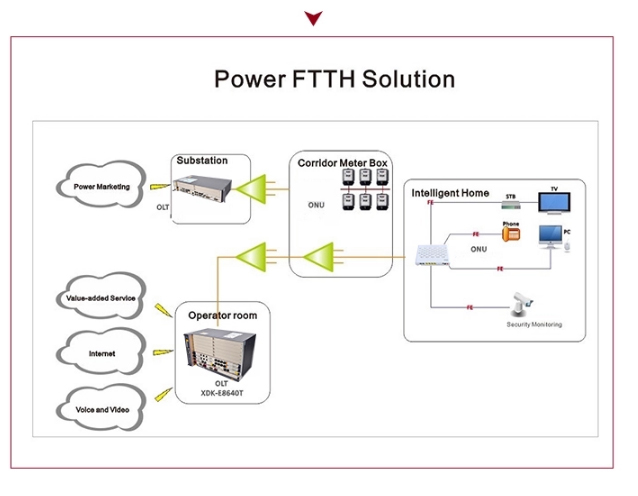

· Connected to MxUs or ONTs and used in FTTB/C and FTTH scenarios
· Connected to xDSL terminals and phones and used in the MSAN/DSLAM scenario
· Chassis supports 2 Service Slots
· One power slot, can supply with 2 ports DC redundancy, or AC and DC redundancy (battery)
· Two slot redundancy for main control board
· Support GPON, EPON and P2P (Optical Access);xDSL and POTS(Copper Access)
· Support GPON & EPON simultaneously
· Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD
· Support GPON split ration 1:128
· Support GE uplink (embedded in MCUD main control board) or 10GE uplink (embedded in MCUD1 main control board)
· MA5608T Software Version available at V800R011,R013 ,R015,R016 and others

MA5608T configuration:
2 MCUD of control and uplink integreated board(MCUD1 10G Uplink for Option)
1 MPWD AC & DC Power Board OR 1 MPWC Dual DC power board (AC to DC Power Converter have to buy separate)

1 GPON or EPON 8 ports board with 8 Modules; (GPFD EPFD 16Ports for Option)

Acessories: Power cable, earth cable, patchcords, banding ribbon, screws etc

Product Features
Optical Access
· Supports a split ratio of 1:128.
· Support small form-factor pluggable (SFP) optical module of Class B+ or Class C+ and XFP optical module, which can be used in different scenarios.
· High-density 48 single-fiber bi-directional or 24 two-fiber bi-directional GE/FE P2P optical access is supported.

Full Service Access
· Supports the High-Performance Multicast Service. The device employs the multicast technology to provide IP video services, including live TV and QVoD, for carriers. By introducing the multicast technology, the network device can manage, control, and forward IP video services and thus meets carriers' requirements for provisioning IP video service.

· The MA5608T has completed its interoperability test with all mainstream NGN/IMSs.

· Connection to the NGN/IMS network through SIP or H.248, implementing the VoIP service (including the voice, fax, and modem services).

· The MA5608T supports reconstruction of traditional voice devices such as the N*64K private line device and ISDN PRI PBX, implementing the ALL IP architecture.

· Implements base station access solution by using MA5608T (OLT)+MDU. And the MA5608T supports clock synchronization in the base station access scenario.

· The MPLS PWE3 provides the E2E reliability and quality assurance for the service.

Integrated Capability of Access and Convergence

NE Convergence

· The MA5608T features powerful access and convergence capability. In the downstream direction, it supports cascading to other devices through the GE or 10GE port. In the upstream direction, it supports connection to the IP/MPLS network through the GE or 10GE port. It also supports dual homing to the BRAS through direct connection.







Supported cabinet

Indoor cabinet: N63E-22

Outdoor cabinet: F01S100, F01S200

Board configuration

2 slots for control boards

2 slots for service boards

1 or 2 slots for the power interface board.

Supported control board and its switching capacity


MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode

System Layer 2 packet forwarding rate



MCUD/MCUD1: 190 Mpps in active/standby mode or 380 Mpps in load-sharing mode

Switching/Forwarding delay

Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.

BER in full load

BER of a port when the port transmits data in full load < 10 e-7

System reliability specifications

System: redundant configuration.

System availability for the typical configuration: > 99.999%

Mean time between failures (MTBF): about 45 years.


Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5600T/MA5603T/MA5608Tis only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.

Maximum number of ADSL2+ ports in a subrack


Maximum number of VDSL2 ports in a subrack


Maximum number of EFM SHDSL ports in a subrack


Maximum number of TDM SHDSL ports in a subrack


Maximum number of POTS ports in a subrack


Maximum number of ISDN BRA ports in a subrack


Maximum number of ISDN PRA ports in a subrack


Maximum number of GPON ports in a subrack


Maximum number of EPON ports in a subrack 32

Maximum number of 10G GPON ports in a subrack


Maximum number of P2P FE ports in a subrack


Maximum number of P2P GE ports in a subrack


Maximum number of upstream ports (ports on the control board) in a subrack


MCUD: 8 x GE (in the load-sharing mode)

MCUD1: 4 x GE + 4 x 10GE/GE (in the load-sharing mode)

Maximum number of ONUs supported by each subrack

For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs.

· For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board.




Corresponding GPON service board:

GPBD(8ports contains 8pcs SFPs modules C+/ C++)

GPFD(16ports contains 16pcs SFPs modules C+/ C++)

·Corresponding EPON service board:

EPBD(8ports contains 8pcs SFPs modules PX20+)

EPFD(16ports contains 16pcs SFPs modules PX20+)






 Huawei MA5608T Xpon OLT

MA5608T Gpon/Epon OLT.
