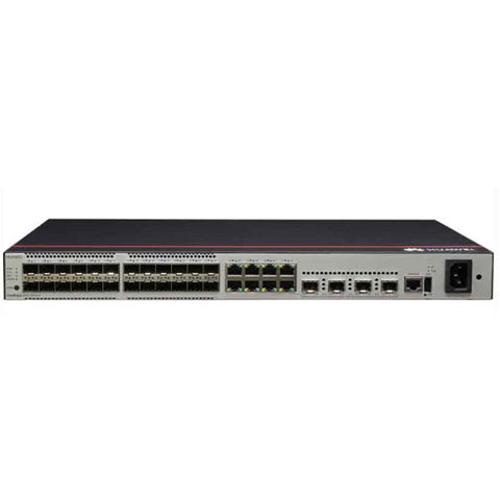

Huawei CloudEngine S5731-S Series DC Switch S5731-S32ST4X-D Support 10G Uplink
Short Description:
| Product Model | |
| CloudEngine S5731-S32ST4X-ACloudEngine S5731-S32ST4X-D | CloudEngine S5731-S48S4X |
| Forwarding Performance | |
| 108 mpps | 125 mpps |
| Switching Capacity2 | |
| 144/672 Gbit/s | 176/672 Gbit/s |
| Fixed Ports | |
| 24 x GE SFP ports, 8 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 48 x GE SFP ports, 4 x 10 GE SFP+ |
| PoE+ | |
| Not supported | Not supported |
| MAC Features | 64,000 MAC entriesMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses |
| VLAN Features | 4094 VLANsGuest VLAN, voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN mapping |
| SVF | Plug-and-play SVF clientAutomatic software and patch loading to clientsOne-click and automatic delivery of service configurationsIndependent client operations |
| VXLAN | VXLAN L2 and L3 gatewaysCentralized and distributed gatewaysBGP-EVPNConfigured through the NETCONF protocol |
