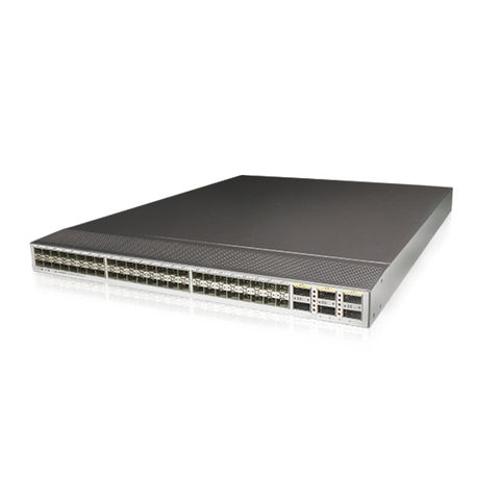

Huawei CloudEngine 10G 100G Data Center Switch CE6881H-48S6CQ
Short Description:
| Parameters | |
| CloudEngine 6881-48S6CQ | |
| CloudEngine 6881H-48S6CQ | CloudEngine 6881H-48T6CQ |
| Downlink Ports | |
| 48 x 10 GE SFP+ | |
| 48 x 10 GE SFP+ | 48 x 10 GE Base-T |
| Uplink Ports | 6 x 40/100 GE QSFP28 |
| Switching Capacity | 2.16 Tbit/s |
| Forwarding Performance | |
| 940 mpps | 954 mpps |
| Buffer | 42 MB |
| Reliability | |
| LACPBFD for BGP, IS-IS, OSPF, static route, and VXLANMicrosegmentationHardware-based BFD | LACPHardware-based BFD |
| O&M | |
| TelemetryNetstreamsFlowERSPAN+ | TelemetryNetstreamERSPAN+ |
| Data Center Features | |
| VXLAN routing and bridgingBGP EVPNM-LAGPFC and ECN | VXLAN routing and bridgingBGP-EVPNM-LAGPTP |
| Maximum Power Consumption | |
| 349 W | |
| 349 W | 452 W |
| Power Supply | 600W AC&240V DC1000W -48V DC1200W HVDC |
| Operating Voltage | |
| AC: 90V~290VDC: -38.4V~-72V240V HVDC: 190V~290V380V HVDC: 190V~400V | AC: 90V~290VDC: -38.4V~-72V380V HVDC: 190V~400V |
