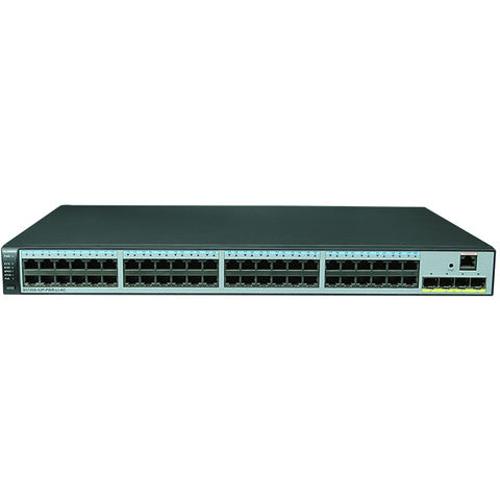

10G Layer 3 Switch Huawei S5720S-52P-PWR-LI-AC
Short Description:
| Item | |
| S5720S-12TP-LI-ACS5720S-12TP-PWR-LI-AC | |
| S5720S-28P-LI-ACS5720S-28P-PWR-LI-ACS5720S-28X-LI-ACS5720S-28X-PWR-LI-AC | |
| S5720S-28X-LI-24S-AC | |
| S5720S-52P-LI-ACS5720S-52P-PWR-LI-ACS5720S-52X-LI-ACS5720S-52X-PWR-LI-AC | S5720S-28TP-PWR-LI-ACL |
| Switching Capacity | 336 Gbit/s, 2.56 Tbit/s |
| Forwarding Performance | S5720S-12TP-LI-AC/S5720S-12TP-PWR-LI-AC: 27 Mpps/84 MppsS5720S-28P-LI-AC/S5720S-28P-PWR-LI-AC/S5720S-28TP-PWR-LI-ACL: 51 Mpps/108 MppsS5720S-52P-LI-AC/S5720S-52P-PWR-LI-AC: 87 Mpps/144 MppsS5720S-28X-LI-AC/S5720S-28X-PWR-LI-AC/S5720S-28X-LI-24S-AC: 108 MppsS5720S-52X-LI-AC/S5720S-52X-PWR-LI-AC: 144 Mpps |
| MAC Address Table | 16K |
| VLAN | 4K |
| Ethernet Loop Protection | RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchoverSEPERPS (G.8032)STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protectionBPDU tunnel |
| IP Routing | Static route, RIP, RIPng, and OSPF |
| QoS/ACL | Rate limiting on packets sent and received by an interfacePacket redirectionInterface-based traffic policing and two-rate and three-color CAREight queues on each interfaceWRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN IDRate limiting in each queue and traffic shaping on interfaces |
| Security | Hierarchical user management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, interface number, and VLAN IDPort isolation, port security, and sticky MACMFFBlackhole MAC address entriesLimit on the number of learned MAC addressesIEEE 802.1x authentication and limit on the number of users on an interfaceAAA authentication, RADIUS authentication, HWTACACS+ authentication, and NACSSH V2.0Hypertext Transfer Protocol Secure (HTTPS) CPU defenseBlacklist and whitelistDHCP relay, DHCP server, and DHCP snoopingDHCPv6 relay, DHCPv6 server, and DHCPv6 snooping |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configurationAutomatically loading the system software package and patches of clients One-click and automatic delivery of service configurationsSupports independent running client |
| Management and Maintenance | iStackVirtual Cable Test (VCT) Remote configuration and maintenance using TelnetSNMP v1/v2c/v3RMONeSight and web-based NMSHTTPSLLDP/LLDP-MEDSystem logs and multi-level alarms802.3az EEE |
