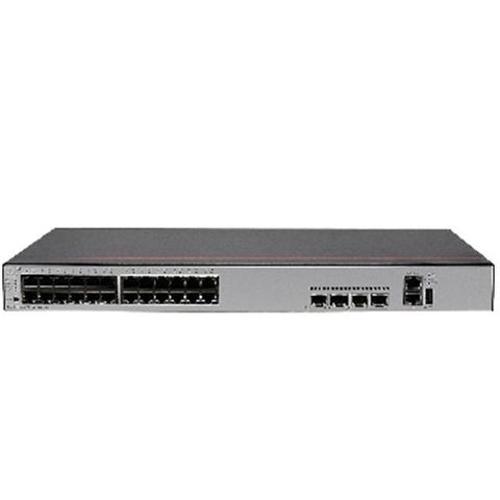

S5735S-L-M Series S5735S-L24T4S-MA 24 ports Switch
Short Description:
| 1 | |
| Twenty-four 10/100/1000BASE-T ports | |
| 2 | Four 1000BASE-X ports Applicable modules: FE optical module (applicable in V200R021C00 and later versions) GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module 10GE SFP+ optical module (only used for stack connection, a maximum transmission distance of 0.4 km, OSXD22N00 not supported, applicable in V200R019C10 and later versions) 1 m and 3 m SFP+ high-speed copper cables (only used for stack connection, applicable in V200R019C10 and later versions) 3 m and 10 m SFP+ AOC cables (only used for stack connection, applicable in V200R019C10 and later versions) 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, applicable in V200R019C10 and later versions) |
| 3 | |
| One console port | |
| 4 | One ETH management port |
| 5 | |
| One USB port | |
| 6 | One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 | |
| Ground screw NOTE: It is used with a ground cable. | |
| 8 | Jack for AC power cable locking strap NOTE: The AC power cable locking strap is not delivered with the switch. |
| 9 | |
| AC socket NOTE: It is used with an AC power cable. | |
| - | - |
