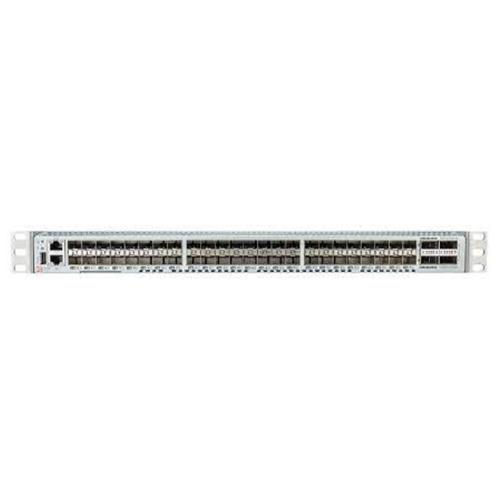

Brocade G620 Switch Industrial Network Switches BR-G620-48-32G-R Fibre Channel Switch 48 ports with 32G SFP
Short Description:
| Specification | Value |
| Lifecycle | Active |
| Access Gateway | Supports |
| Bandwidth | 2 Tb/s |
| Certified Maximum | 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Fibre Channel Performance | Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/sline speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4/8/10/16/32G port speeds; 10 Gb/s optionallyprogrammable to fixed port speed. Auto-sensing of 4×32/4×16/4×8/4×4G speeds on the QSFP ports with Brocade FOS v8.2.0 |
| FICON Support | Supports |
| Frame Based ISL Trunking | 256Gb/s frame-based trunk (optional) |
| Power Text | 205W, dual hot-swappable power supplies |
| Size (mm) | 440(W) x 43.9(H) x 355.6(D) |
| Total Line Rate Ports | 24 to 64 @ 32G |
