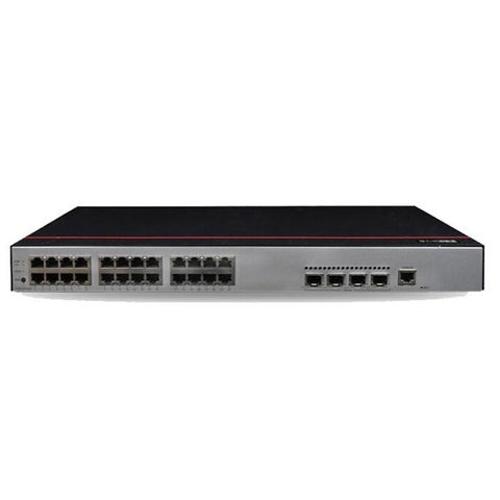

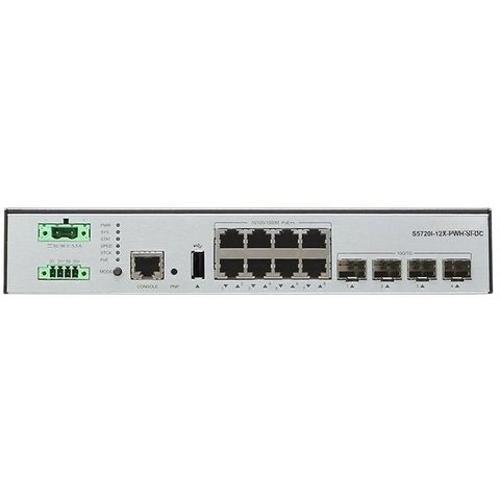

S5720I-12X-SI-AC S5720I-SI Series Layer 3 Gigabit Switch
Short Description:
| Item | |
| S5720I-12X-SI-AC | |
| S5720I-12X-PWH-SI-DC | S5720I-28X-SI-AC |
| Switching capacity | |
| 336 Gbit/s | |
| 336 Gbit/s | |
| 336 Gbit/s | |
| Forwarding performance | |
| 72 Mpps | |
| 72 Mpps | 96 Mpps |
| Fixed ports | |
| 8 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+ | 24 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+ |
| PoE | |
| NA | |
| 8 PoE++ ports | |
| NA | |
| Operating voltage | S5720I-12X-SI-AC / S5720I-28X-SI-AC: |
| Operating temperature | |
| 0m to 1,800m altitude: -40°C to +75°C | 0-1800 m altitude: -40°C to +65°C |
| -40°C to +70°C (Vented Enclosure – 40 LFM Air Flow) | 1800-5000 m altitude: The operating temperature reduces by 1°C for each 220m increase in altitude. |
| -40°C to +65°C (Sealed Enclosure – 0 LFM Air Flow) | Support startup in -40°C. |
| -40°C to +75°C (Fan or Blower equipped Enclosure – 200 LFM Air Flow) | |
| 1,800m to 5,000m altitude: The operating temperature reduces by 1°C for each 220m increase in altitude. | |
| Support startup in -40°C. | |
| Surge protection | Built-in surge protection to best suit harsh outdoor environments |
| IP Code | IP30 |
| Relative humidity | 5% to 95% (non-condensing) |
| Heat dissipation | |
| Natural heat dissipation without fans | Heat dissipation with fan, intelligent fan speed adjustment |
