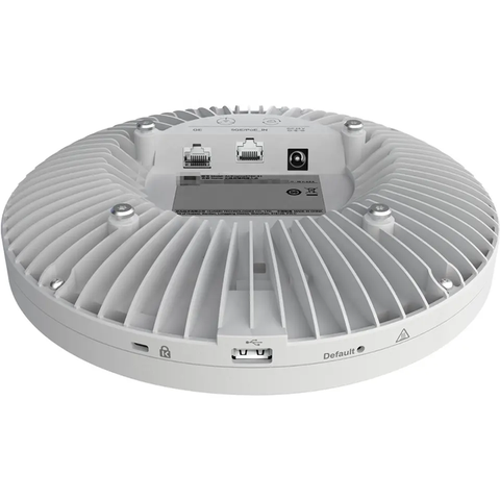

AirEngine 5760-51 Wi-Fi 6 (802.11ax) indoor access point 802.11a/b/g/n/ac/ac Wave 2/ax
Short Description:
| AirEngine 5760-51 Wi-Fi 6 (802.11ax) indoor access point for prompt delivery Dimensions (Diameter x Height) 220 mm x 50 mm Power Input DC: 48 V ± 10%PoE power supply: in compliance with IEEE 802.3bt Maximum Number of Users ≤ 1024 (dual-radio mode)≤ 1152 (triple-radio mode)Note: The actual number of users varies according to the environment. Port 1 x 5 GE and 1 x GE electrical IoT Built-in IoT slots Operating Temperature –10°C to 50°C Antenna Type Built-in Smart Antennas MIMO: Spatial Streams Basic capability:2.4 GHz: 2x2:2; 5 GHz: 4x4:42.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 2x2:2Capability upgrade via RTU license:2.4 GHz: 4x4:4; 5 GHz: 4x4:42.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 4x4:4 Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax Maximum Data Rate Basic capability: up to 5.37 Gbit/sRTU license upgrade: up to 5.95 Gbit/s | |
| AirEngine 5760-51 Wi-Fi 6 (802.11ax) indoor access point for prompt delivery | |
| Dimensions (Diameter x Height) | |
| 220 mm x 50 mm | |
| Power Input | |
| DC: 48 V ± 10%PoE power supply: in compliance with IEEE 802.3bt | |
| Maximum Number of Users | |
| ≤ 1024 (dual-radio mode)≤ 1152 (triple-radio mode)Note: The actual number of users varies according to the environment. | |
| Port | |
| 1 x 5 GE and 1 x GE electrical | |
| IoT | |
| Built-in IoT slots | |
| Operating Temperature | |
| –10°C to 50°C | |
| Antenna Type | |
| Built-in Smart Antennas | |
| MIMO: Spatial Streams | |
| Basic capability:2.4 GHz: 2x2:2; 5 GHz: 4x4:42.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 2x2:2Capability upgrade via RTU license:2.4 GHz: 4x4:4; 5 GHz: 4x4:42.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 4x4:4 | |
| Radio Protocols | |
| 802.11a/b/g/n/ac/ac Wave 2/ax | |
| Maximum Data Rate | |
| Basic capability: up to 5.37 Gbit/sRTU license upgrade: up to 5.95 Gbit/s | |
| Dimensions (Diameter x Height) | 220 mm x 50 mm |
| Power Input | DC: 48 V ± 10%PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 (dual-radio mode)≤ 1152 (triple-radio mode)Note: The actual number of users varies according to the environment. |
| Port | 1 x 5 GE and 1 x GE electrical |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO: Spatial Streams | Basic capability:2.4 GHz: 2x2:2; 5 GHz: 4x4:42.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 2x2:2Capability upgrade via RTU license:2.4 GHz: 4x4:4; 5 GHz: 4x4:42.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Data Rate | Basic capability: up to 5.37 Gbit/sRTU license upgrade: up to 5.95 Gbit/s |
