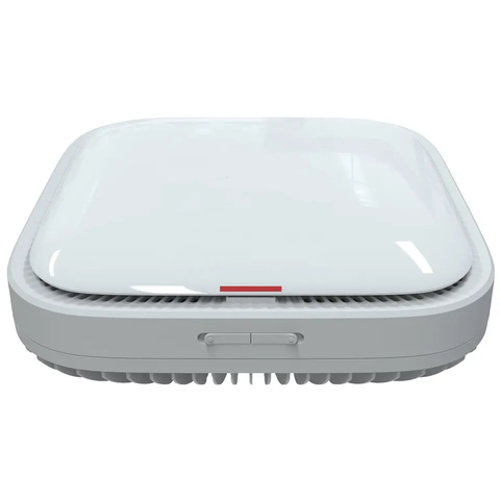

AirEngine 8760-X1-PRO Wi-Fi 6 (802.11ax) indoor Access Point (AP)
Short Description:
| Parameters | AirEngine 8760-X1-PRO |
| Dimensions (H x W x D) | 61 mm x 220 mm x 220 mm |
| Power Input | DC: 48 V ± 10% |
| PoE power supply: in compliance with IEEE 802.3bt | |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) |
| ≤ 1152 (triple-radio mode) | |
| Note: The actual number of users varies according to the environment | |
| Port | 2 x 10 GE electrical and 1 x 10 GE SFP+ |
| Built-in Bluetooth | BLE 5.0 |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO: Spatial Streams | 2.4 GHz: 4x4:4; 5 GHz: 12x12:8 |
| 2.4 GHz: 4x4:4; 5 GHz-0: 8x8:8; 5 GHz-1: 4x4:4 | |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 10.75 Gbit/s |
