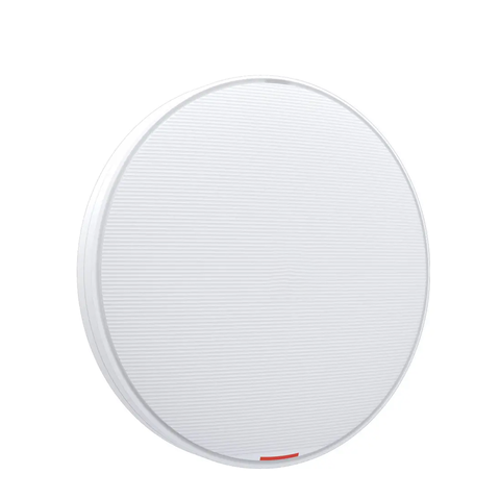

AirEngine 6761-21T indoor Wi-Fi 6 (802.11ax) Access Point
Short Description:
| Parameters | AirEngine 6761-21T |
| Dimensions (Diameter x Height) | Φ220 x 50 mm |
| Power Input | DC: 12 V ±10% |
| PoE power supply: In compliance with 802.3at. | |
| Maximum Power Consumption | 21.20 W (excluding USB) |
| Note: The actual maximum power consumption depends on local laws and regulations. | |
| Maximum Number of Users | ≤ 1536 |
| Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2x2:2; 5 GHz: 2x2:2; 5 GHz: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 6.575 Gbit/s |
