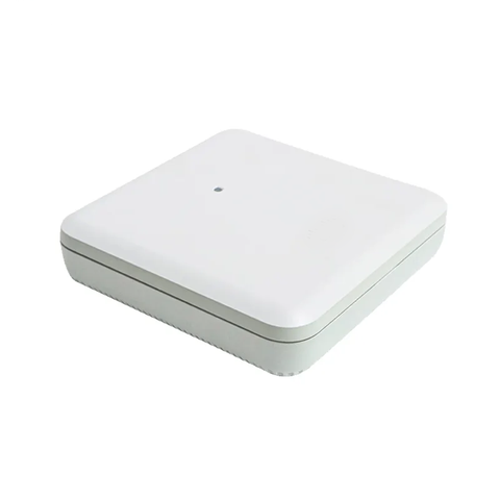

Best price Cis co air-ap2802i-k-k9 enterprise wireless outdoor Access Point
Short Description:
| AIR-AP2802I-K-K9 Specification | |
| Software | * Unified Wireless Network Software Release 8.2.111.0 or later * IOS®XE Software Release 16.3 |
| Supported wireless LAN controllers | * 2500 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst®6500 Series Switches, 5500 Series Wireless Controllers, Flex® 7500 Series Wireless Controllers, 8500 Series Wireless Controllers, Virtual Wireless Controller * Catalyst 3850 Series Switches, Catalyst 3650 Series Switches * Mobility Express |
| 802.11n version 2.0 (and related) capabilities | * 4x4 MIMO with three spatial streams * Maximal ratio combining (MRC) * 802.11n and 802.11a/g beamforming * 20- and 40-MHz channels * PHY data rates up to 450 Mbps (40 MHz with 5 GHz) * Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) * 802.11 dynamic frequency selection (DFS) * Cyclic shift diversity (CSD) support |
| 802.11ac Wave 1 capabilities | * 4x4 MIMO with three spatial streams * MRC * 802.11ac beamforming * 20-, 40-, and 80-MHz channels * PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) * Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) * 802.11 DFS * CSD support |
| 802.11ac Wave 2 capabilities | * 4x4 MU-MIMO with three spatial streams * MRC * 802.11ac beamforming * 20-, 40-, 80, 160-MHz channels * PHY data rates up to 5.2 Gbps * Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) * 802.11 DFS * CSD support |
| Integrated antenna | Flexible radio (either 2.4 GHz or 5 GHz) * 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth * 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°Dedicated 5-GHz radio * 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | * 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) * offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios |
| Smart antenna connector | * Available on the 2802e Series access points only * Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point * Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio |
| Interfaces | * 2802I/E 2x100/1000BASE-T autosensing (RJ-45) * Management console port (RJ-45) * USB 2.0 (enabled via future software) |
| Indicators | * Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | * Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50” |
| Weight | Aironet 2802i * 3.53 lb (1.6 kg)Aironet 2802e * 4.6 lb (2.09 kg) |
| Input power requirements | * 802.3at PoE+, Universal PoE ( UPOE®) * 802.3at power injector (AIR-PWRINJ6=) |
| Power draw | * 26W at the PSE with all features enabled except for the USB 2.0 port * 30W at the PSE with the USB 2.0 port enabled |
| Environmental | Aironet 2802i * Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) * Nonoperating (storage) altitude test: 25 C, 15,000 ft. * Operating temperature: 32° to 104°F (0° to 40°C) * Operating humidity: 10% to 90% (noncondensing) * Operating altitude test: 40 C, 9843 ft.Aironet 2802e * Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) * Nonoperating (storage) altitude test: 25 C, 15,000 ft. * Operating temperature: -4° to 122°F (-20° to 50°C) * Operating humidity: 10% to 90% (noncondensing) * Operating altitude test: 40 C, 9843 ft. |
| System memory | * 1024 MB DRAM * 256 MB flash |
